SX-700/500
Suxin Medical
9405429000
Unique features:
1、The operation lamp adopts fully enclosed structure and streamlined design, which fully meets the requirements of laminar flow purification and sanitation in the operating room.
2、The professionally surgical lamp fully natural positioning (no drift phenomenon) and meet the illumination of different surgical sites；The rotating arm can rotate 360°, it is flexible, portable.
3、Long service life up to 50,000h of the LED cold lighting source, bulb is not necessary to be replaced to ensure the maximum economy use and the environmental protection.
4、The device adopts Germany novel cold lighting, no infrared and ultraviolet radiation, no temperature raising on doctors head to achieve excellent cold light effect.

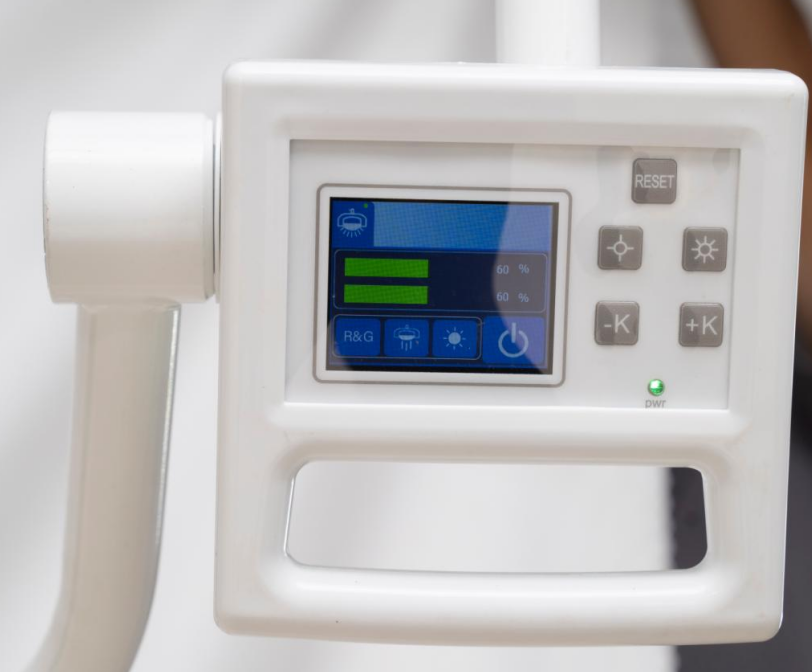

5、Humanized surface design with touchable control mode to meet the different surgical lighting requirements in the hospital.
6、Color temperature is adjustable from 3700K to 5500K, this feature can make the diagnosis more accurately and reduce doctors visual fatigue.
Technical parameter：
Model | LED 700/500 |
LED lamp beads qty | 80/48 |
Illuminance（Lux） | 40000—180000; 34000—140000 |
Color Temperature（K） | 3700—5000（adjustable） |
Spot Diameter（mm） | 150-300/150-300 |
Color Rendering Index (CRI) | ≥96 |
The depth of the irradiation (MM) | ≥1200 |
Brightness Adjustment Digital Display | 1%~10% |
Power supply and voltage | ~220V/50Hz, 110v optional |
Input power（Ｗ） | 35W |
Temperature at surgeon's head | ＜1℃ |
LED average lift | ≥50000h |
Best height installation | 2.8-3.2M |
Configuration:
No | Item Name | QTY | Unit | Remark |
1 | Lampholder | 2 | sets | |
2 | Disinfection handle | 4 | pcs | |
3 | Lamp beads | 128 | pcs | |
4 | Balancer | 2 | sets | |
5 | Rotating arm | 1 | set | Double arms |
6 | Switch power supply assembly | 2 | sets | |
7 | Fixed base | 1 | set | |
8 | Shield | 1 | set | |
9 | Light tools | 1 | set | |
10 | Operating manual | 1 | set |
