SXD8801-A
SUXIN MEDICAL
940290

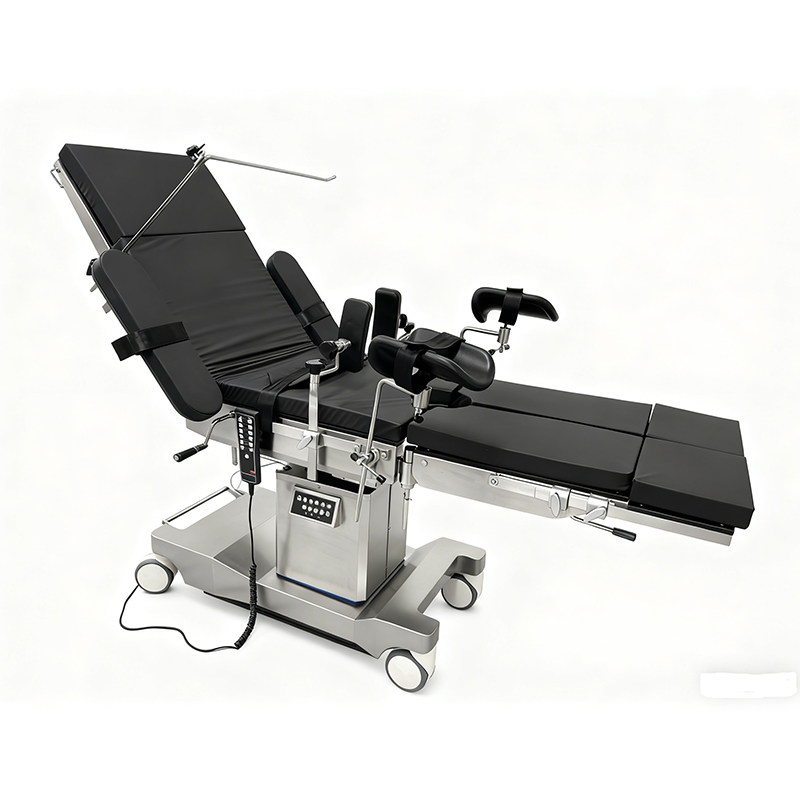

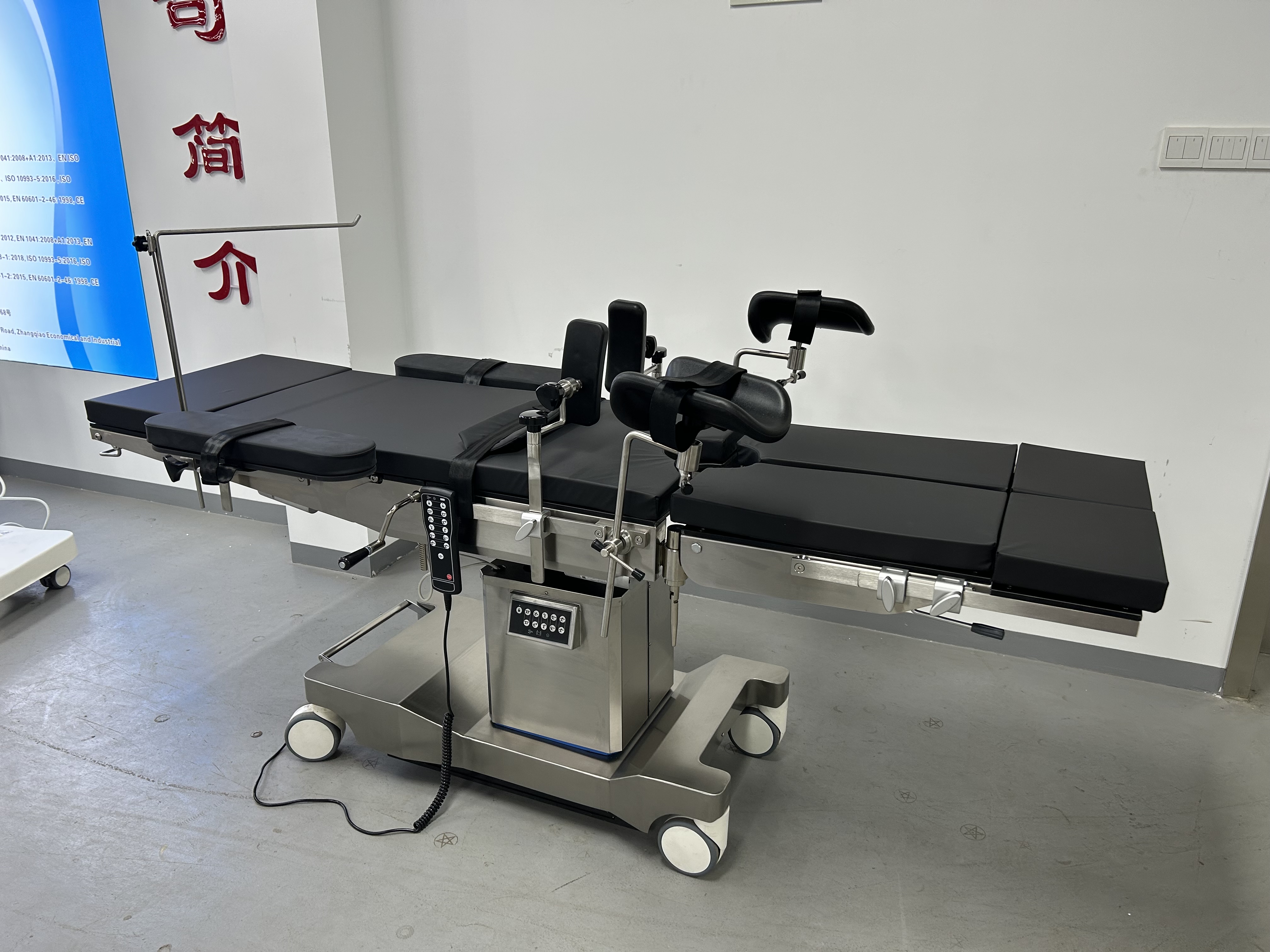

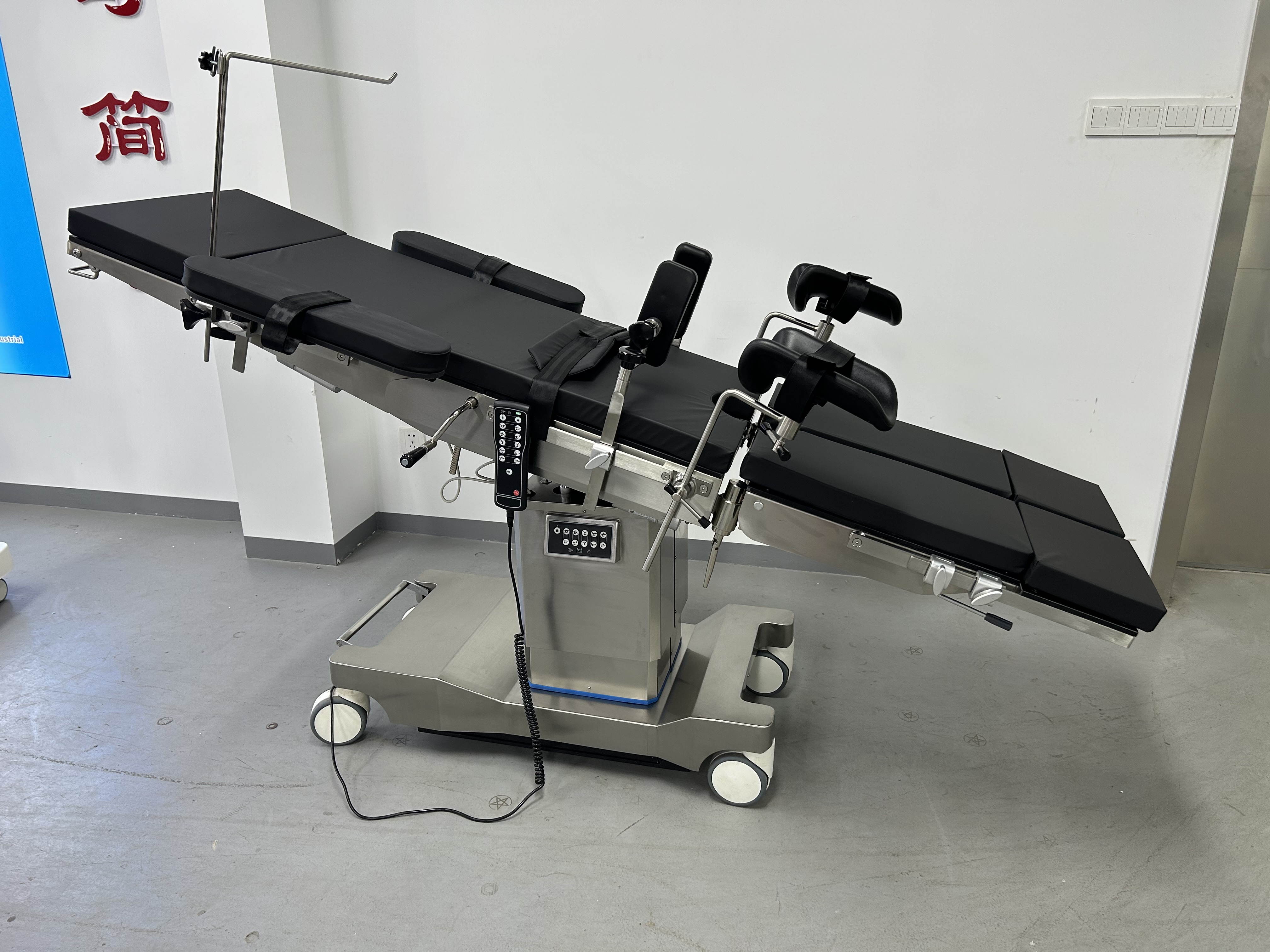

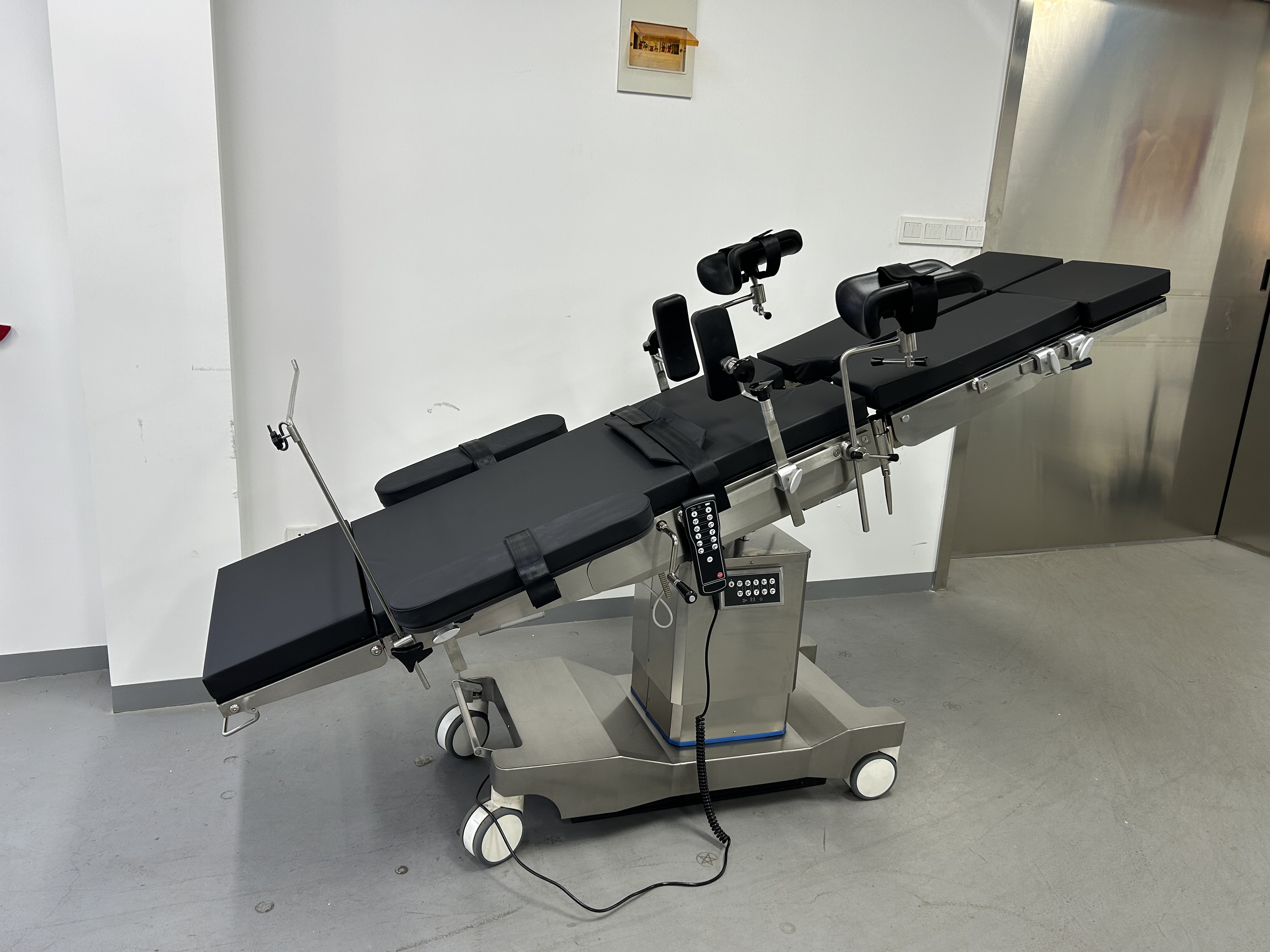

This electric operating table meets all kinds of different surgeries.
Unique features：
1. The table with x-ray c-arm feature and can be used for all universal type surgeries.
2. The tabletop is made of imported arcylic plate material, with good radiolucent feature.
3. Mobile table-base on antistatic heavy duty swivel castors with central brake ensuring a stable base.
4. One key reset and one key stop make the doctors to operate this bed more easiler.
5. The bed is made of memory sponge mattress,easy to clean and disinfect.
6. The operating table is equipped with international standard side rails,which can be matched with various functional accessories to suit the needs of different surgeries.
7.Equipped with built-in emergency power supply to ensure the normal use of the operating bed in the case of power failure;
Technical parameters:
Table size | 2100（±20）×550（±20）mm |
Table height | 750(±20)- 1050±20) mm |
Lateral tilt | ≥20°electrical motion |
Trendelenburg& reverse trendelenburg | ≥25° electrical motion |
| One Key Reset | Yes |
| Battery system | At least 2-4 hours |
| One Key Stop | Yes |
Back plate up/down folding | ≥80°/30° |
Head plate adjustment | ≥30°--90° |
Kidney bridge adjustment | ≥120 mm |
Electric horizontal sliding | ≥300mm |
Leg plate（up/down/outwards） | ≥15°/90°/90° |
Configuration:
No | Accessories name | Qty | Unit |
1 | Table body | 1 | set |
2 | Mattress | 1 | set |
3 | Motor | 6 | sets |
4 | Anesthetic screen | 1 | set |
5 | Hand support | 2 | pcs |
6 | Leg support | 2 | pcs |
7 | Kidney bridge | 2 | pcs |
10 | Hand remoter | 1 | pc |
11 | Board control | 1 | set |
12 | Power supply cable | 1 | pc |
13 | Battery system | 2 | pcs |
14 | Operation manual | 1 | set |
This electric operating table meets all kinds of different surgeries.
Unique features：
1. The table with x-ray c-arm feature and can be used for all universal type surgeries.
2. The tabletop is made of imported arcylic plate material, with good radiolucent feature.
3. Mobile table-base on antistatic heavy duty swivel castors with central brake ensuring a stable base.
4. One key reset and one key stop make the doctors to operate this bed more easiler.
5. The bed is made of memory sponge mattress,easy to clean and disinfect.
6. The operating table is equipped with international standard side rails,which can be matched with various functional accessories to suit the needs of different surgeries.
7.Equipped with built-in emergency power supply to ensure the normal use of the operating bed in the case of power failure;
Technical parameters:
Table size | 2100（±20）×550（±20）mm |
Table height | 750(±20)- 1050±20) mm |
Lateral tilt | ≥20°electrical motion |
Trendelenburg& reverse trendelenburg | ≥25° electrical motion |
| One Key Reset | Yes |
| Battery system | At least 2-4 hours |
| One Key Stop | Yes |
Back plate up/down folding | ≥80°/30° |
Head plate adjustment | ≥30°--90° |
Kidney bridge adjustment | ≥120 mm |
Electric horizontal sliding | ≥300mm |
Leg plate（up/down/outwards） | ≥15°/90°/90° |
Configuration:
No | Accessories name | Qty | Unit |
1 | Table body | 1 | set |
2 | Mattress | 1 | set |
3 | Motor | 6 | sets |
4 | Anesthetic screen | 1 | set |
5 | Hand support | 2 | pcs |
6 | Leg support | 2 | pcs |
7 | Kidney bridge | 2 | pcs |
10 | Hand remoter | 1 | pc |
11 | Board control | 1 | set |
12 | Power supply cable | 1 | pc |
13 | Battery system | 2 | pcs |
14 | Operation manual | 1 | set |
