SXD8803
SUXIN MEDICAL
940290

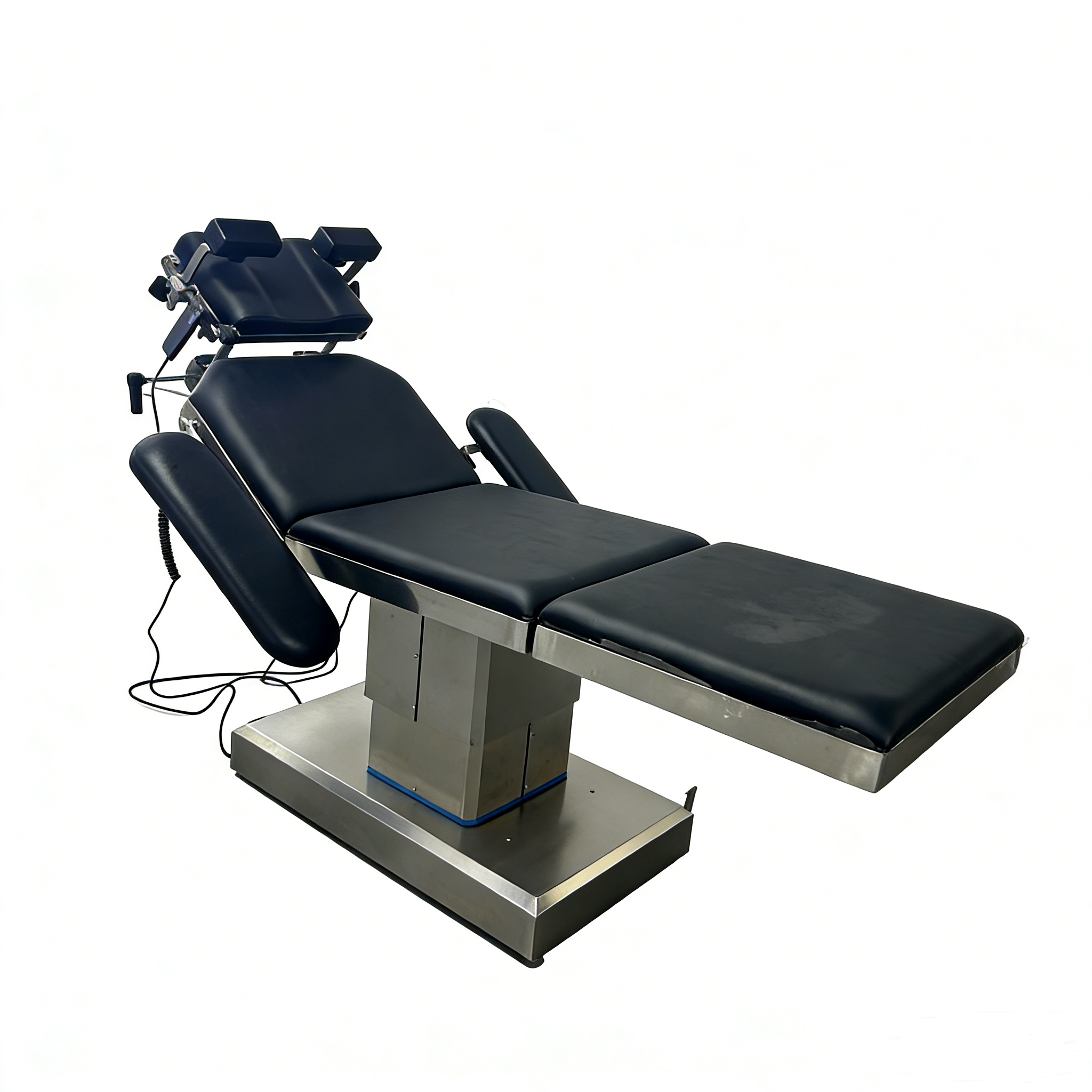

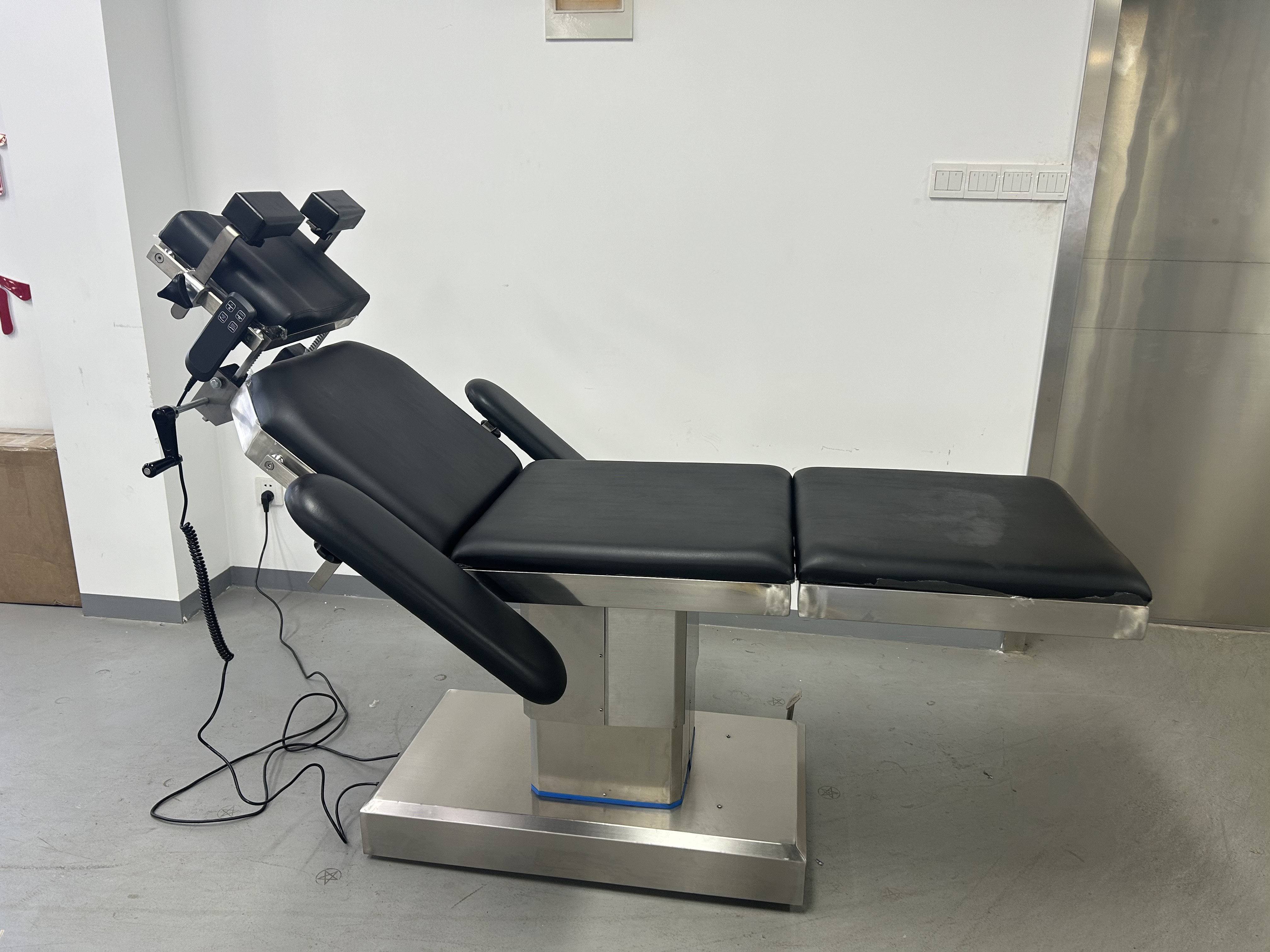

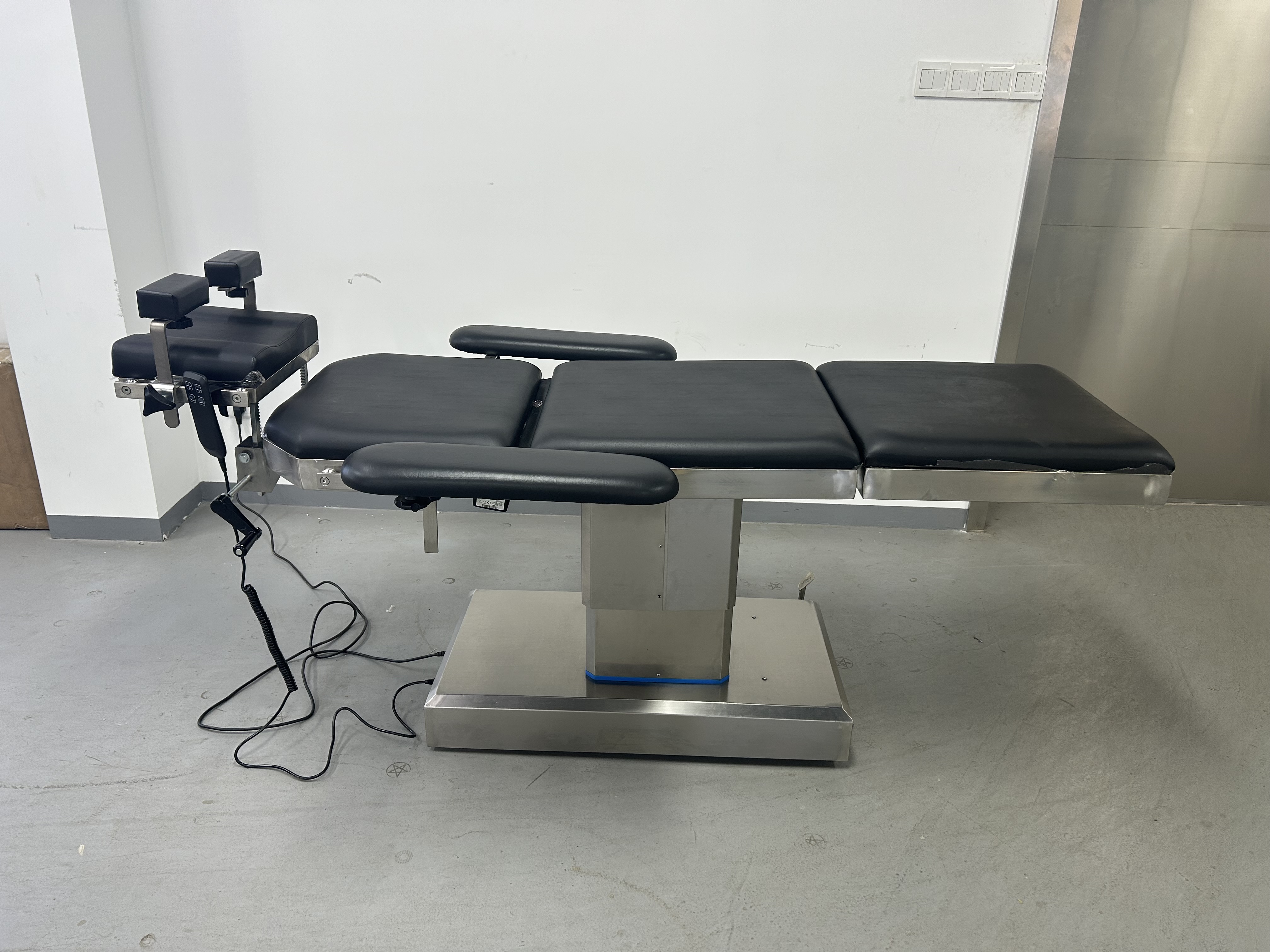

This electric operating table used for ophthalmic eye surgeries.
Unique features：
1. The table is especially suitable for ophthalmic/ dental surgery.
2. The table is mainly made of stainless steel, easy to clean and anti-pollution.
3. This device base can be fixed or moved freely and also with the mute caster.
4. The bed is made of memory sponge mattress,easy to clean and disinfect.
5. The Lifting is realized by electricity and with low noise feature.
6. The most important feature is that it can be lowed to 500mm height from floor and equipped with
handrest,which makes doctors more comfortable to do operations.The motions of raising and
lowering are controlled by electrically.Itisquiet,reliable and easy to operate.
Technical parameters:
Table size | 2000（±20）×500（±20）mm |
Table height | 500(±20)- 750±20) mm |
Back plate up folding | ≥70° |
Head plate adjustment | ≥150mm |
Leg plate type | Detachable |
Configuration:
No | Accessories name | Qty | Unit |
1 | Table body | 1 | set |
2 | Mattress | 1 | set |
3 | Motor | 2 | sets |
4 | Anesthetic screen | 1 | set |
5 | Hand support | 2 | pcs |

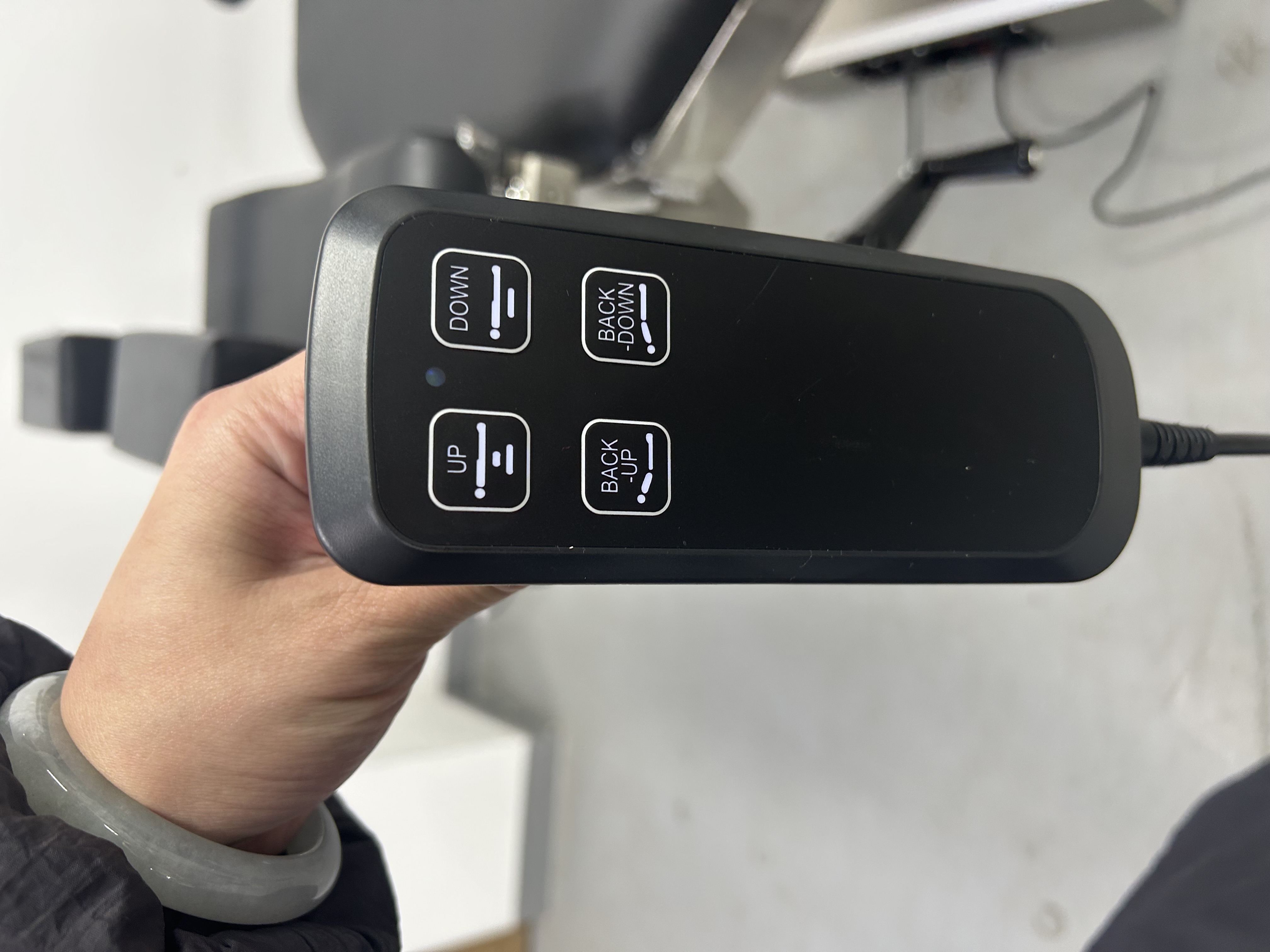

6 | Hand remoter | 1 | pc |
7 | Power supply cable | 1 | pc |
8 | Operation manual | 1 | set |
