SXD8804-A
SUXIN MEDICAL
940290

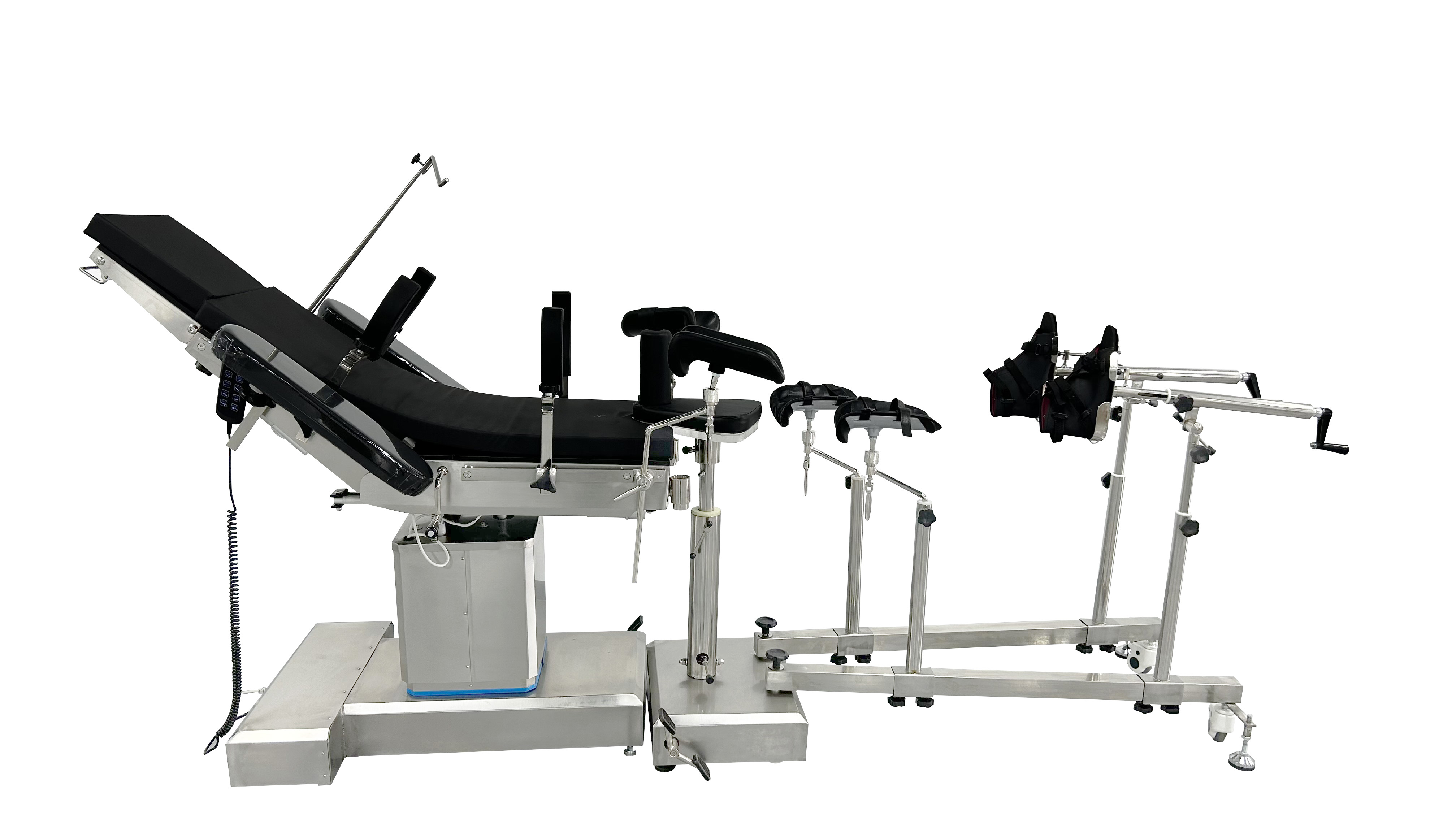

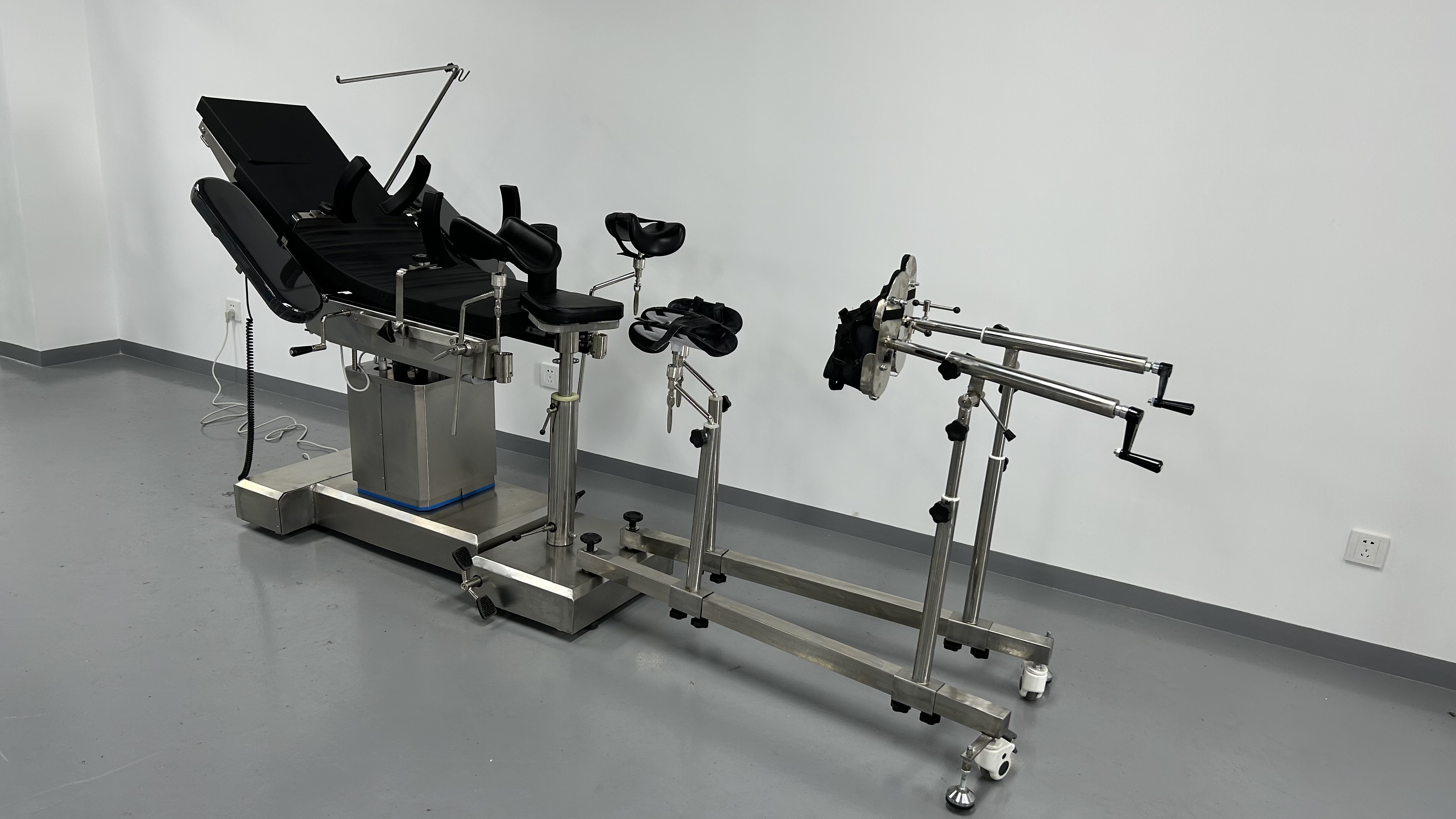

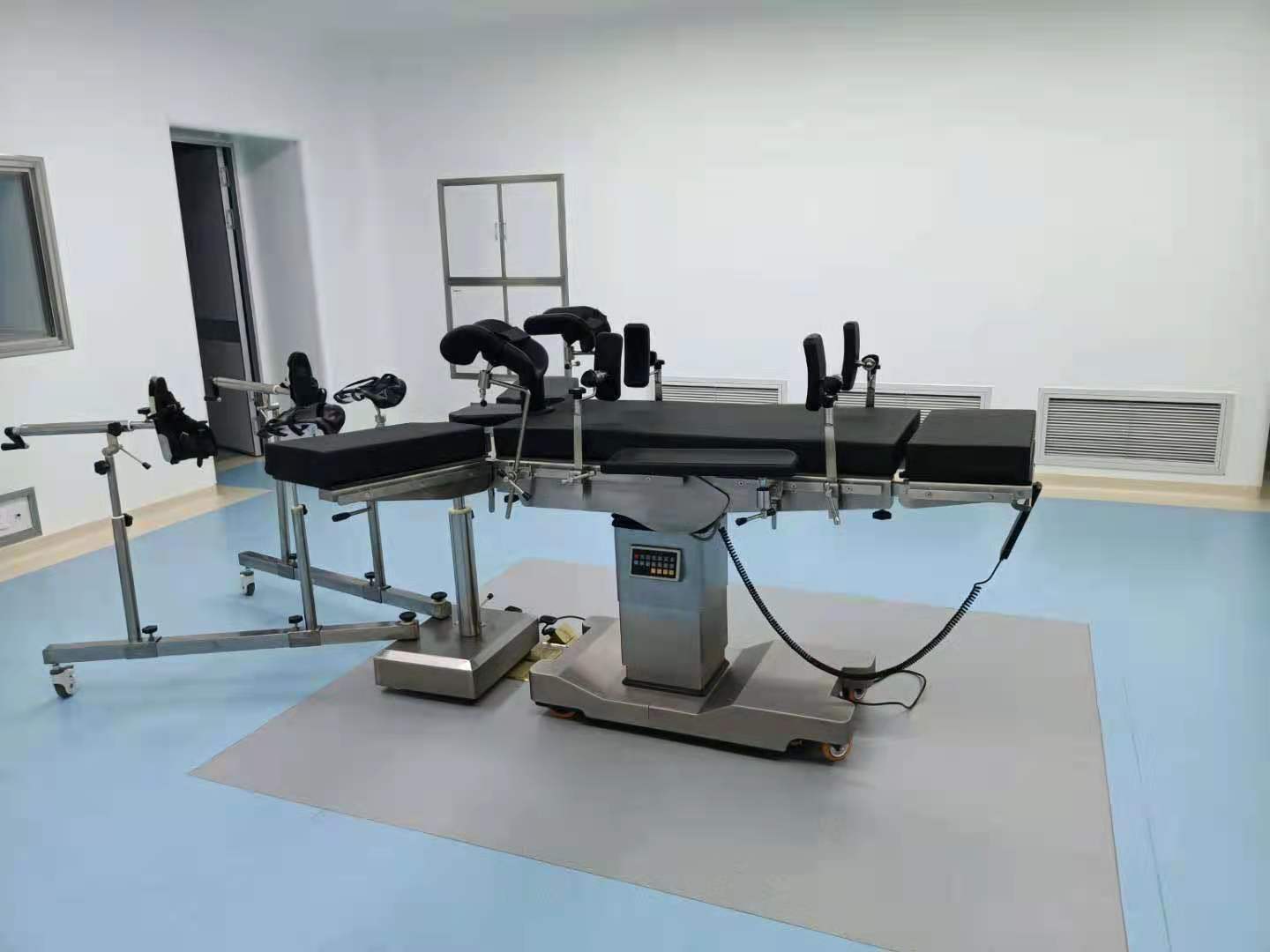

This electric operating table meets all kinds of different surgeries.
Unique features：
1. The table with x-ray c-arm feature and can be used for all universal type surgeries.
2. The tabletop is made of imported arcylic plate material, with good radiolucent feature.
3. T-base on swivel castors ensuring a stable base.

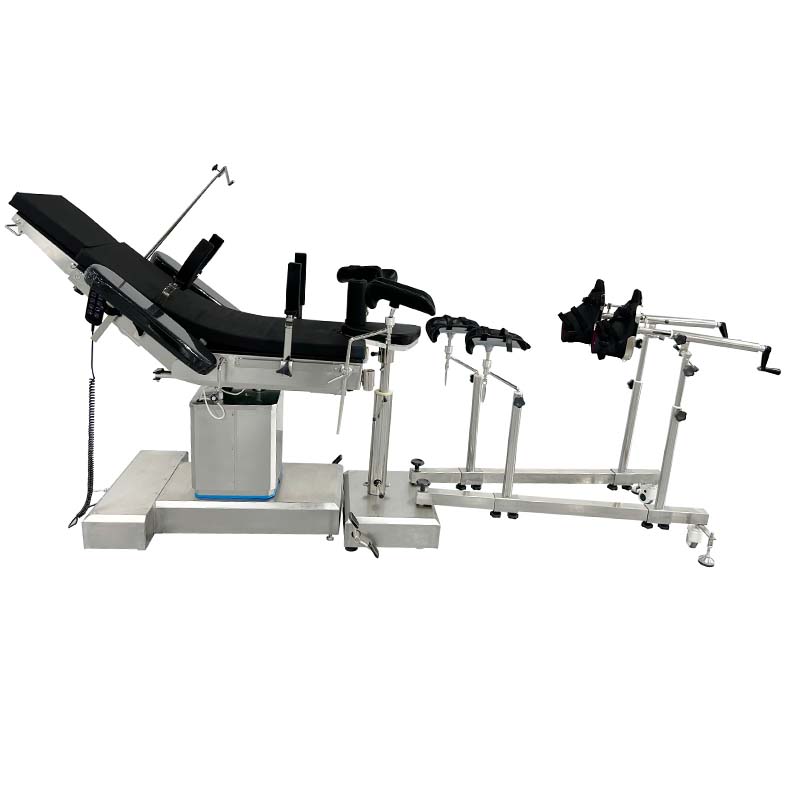

4. Can be connected with traction frame set together.
5. The bed is made of memory sponge mattress,easy to clean and disinfect.
6. The operating table is equipped with international standard side rails,which can be matched with various functional accessories to suit the needs of different surgeries.
7.Equipped with built-in emergency power supply to ensure the normal use of the operating bed in the case of power failure;
Technical parameters:
Table size | 2100（±20）×500（±20）mm |
Table height | 750(±20)- 1050±20) mm |
Lateral tilt | ≥20°electrical motion |
Trendelenburg& reverse trendelenburg | ≥25° electrical motion |
| Battery system | At least 2-4 hours |
Back plate up/down folding | ≥80°/30° |
Head plate adjustment | ≥30°--90° |
Kidney bridge adjustment | ≥120 mm |
Electric horizontal sliding | ≥300mm |
Leg plate（up/down/outwards） | ≥15°/90°/90° |
Configuration:
No | Accessories name | Qty | Unit |
1 | Table body | 1 | set |
2 | Mattress | 1 | set |
3 | Motor | 6 | sets |
4 | Anesthetic screen | 1 | set |
5 | Hand support | 2 | pcs |
6 | Leg support | 2 | pcs |
7 | Kidney bridge | 2 | pcs |
10 | Hand remoter | 1 | pc |
11 | Battery system | 2 | pcs |
12 | Operation manual | 1 | set |
