SXD8804-B
Suxin
9402900000

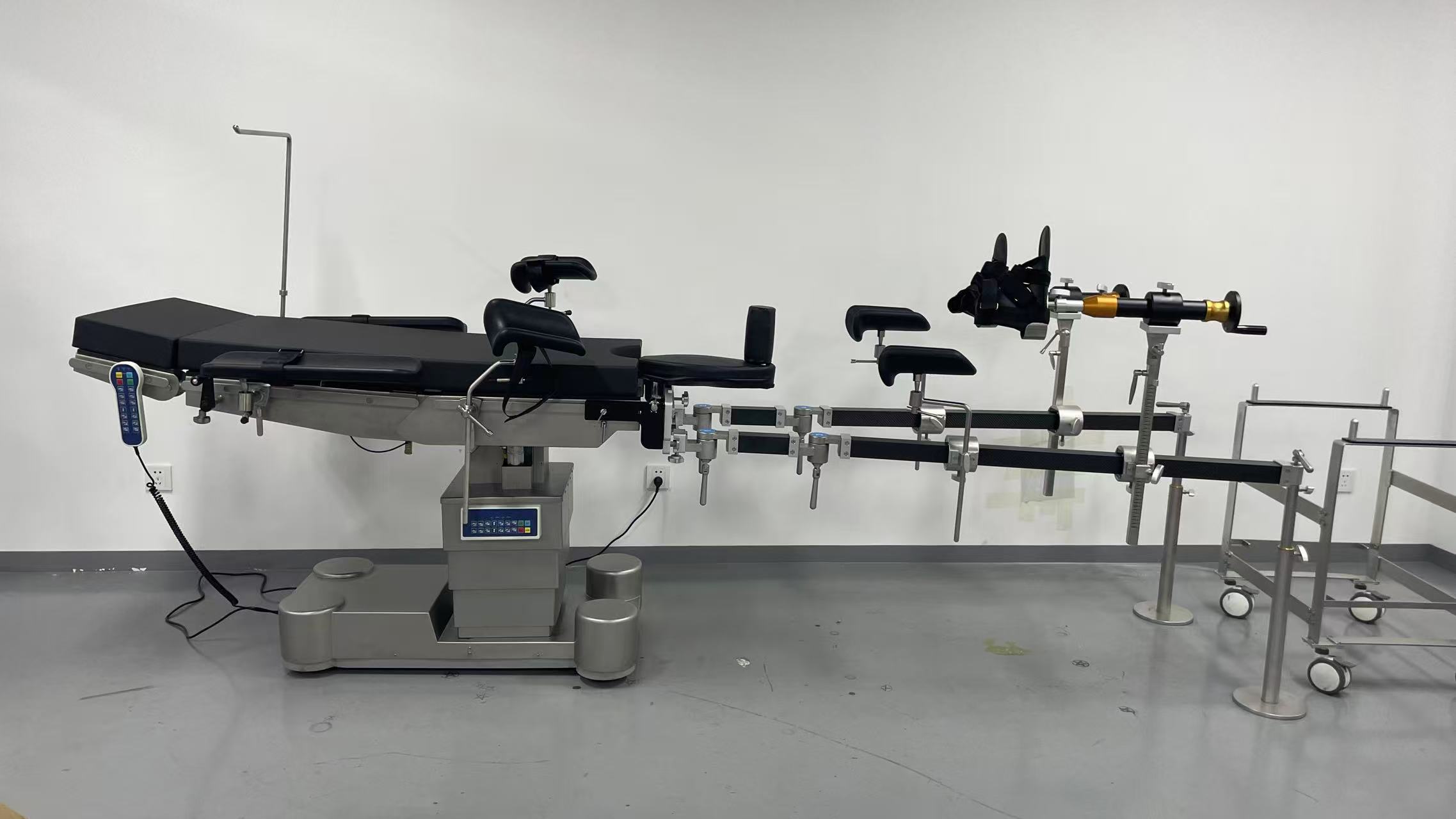

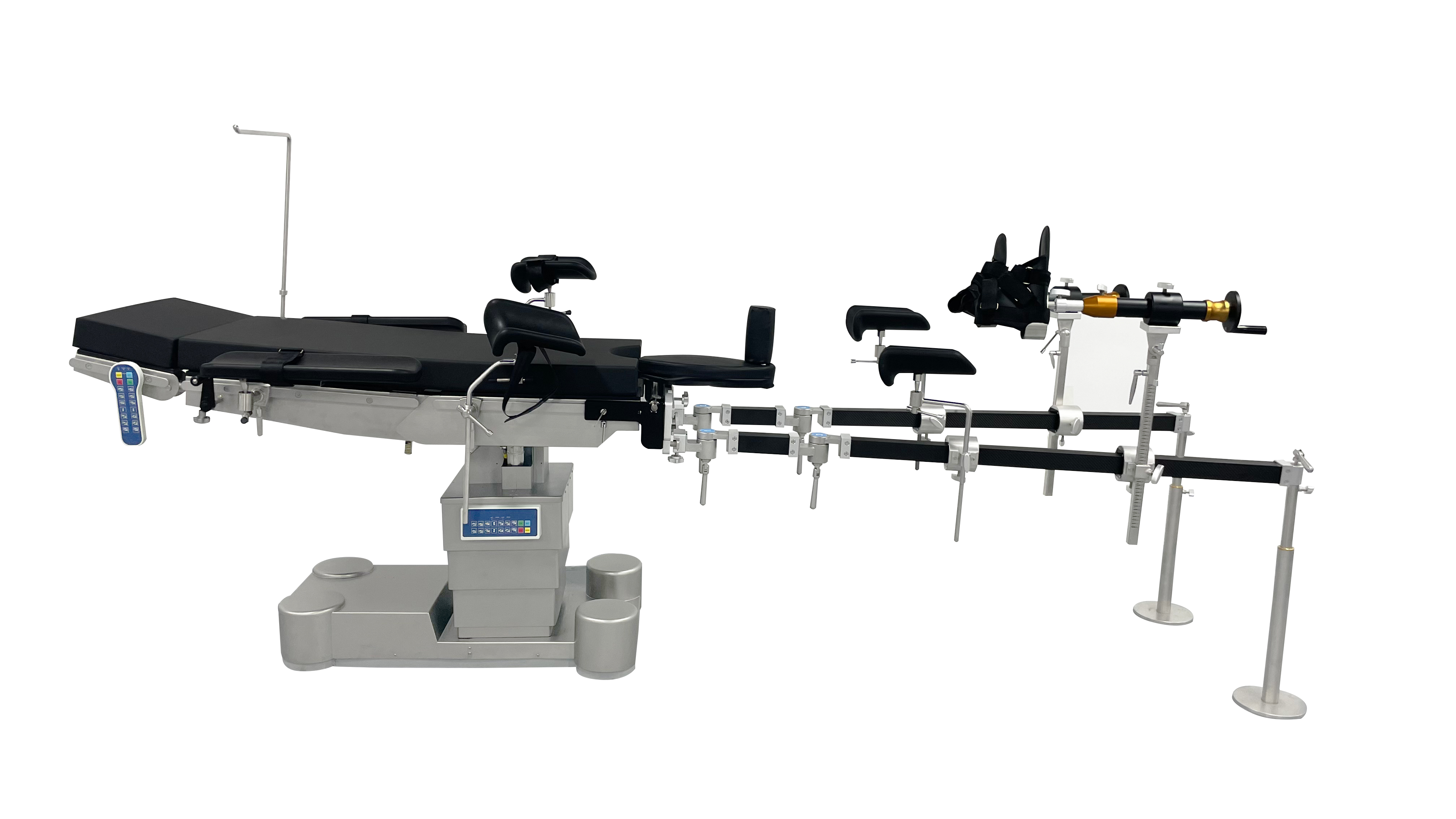

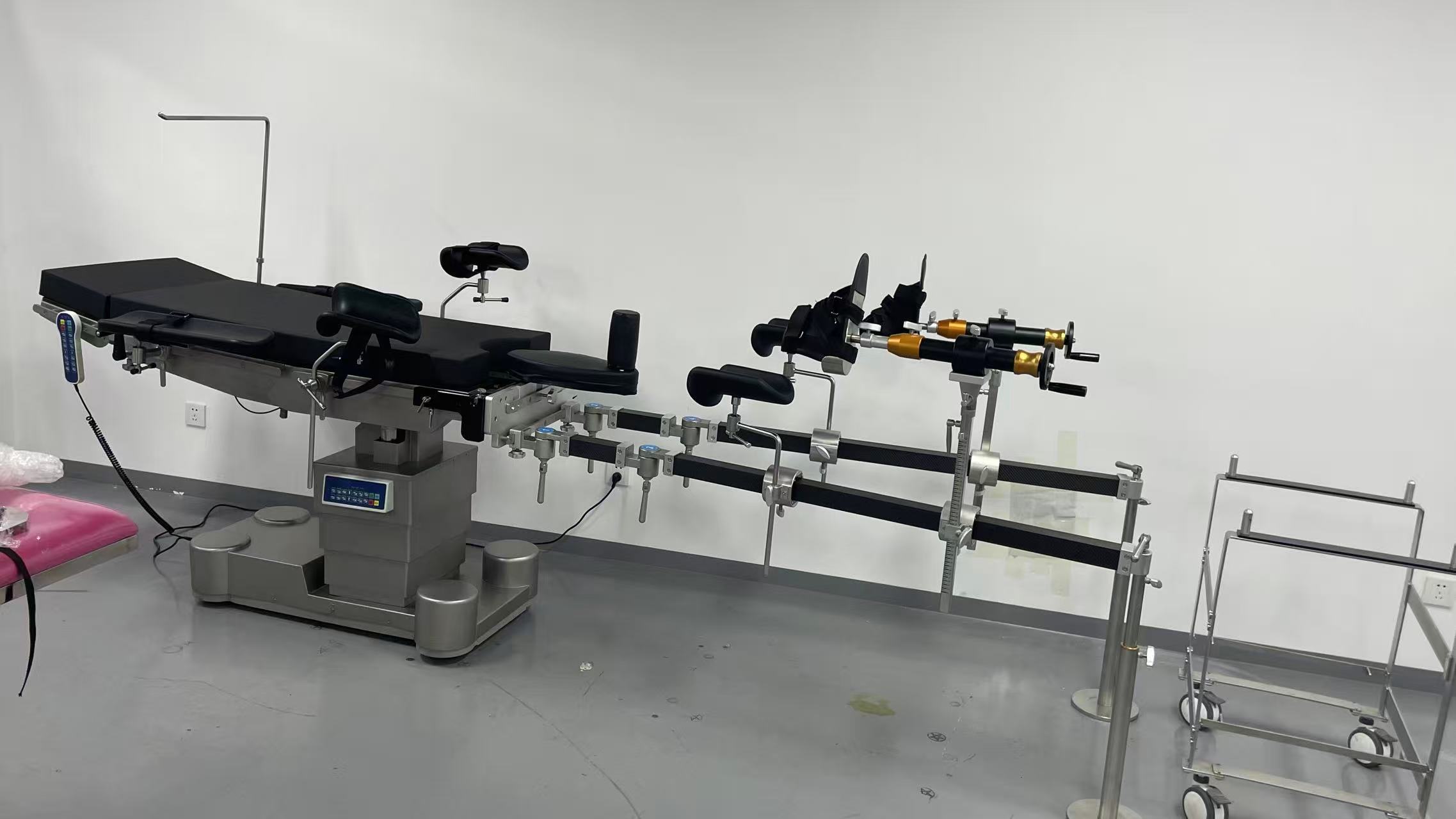

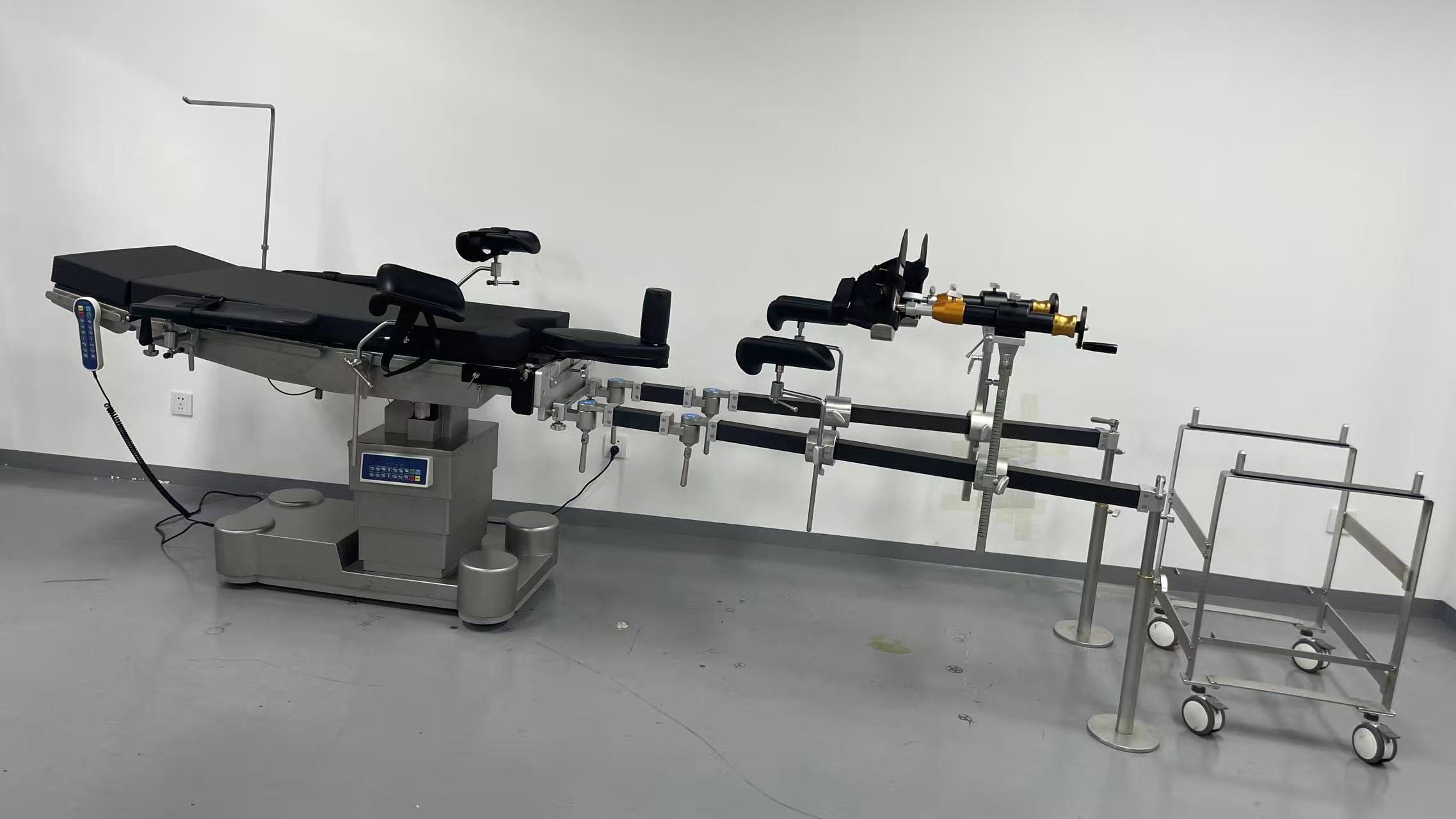

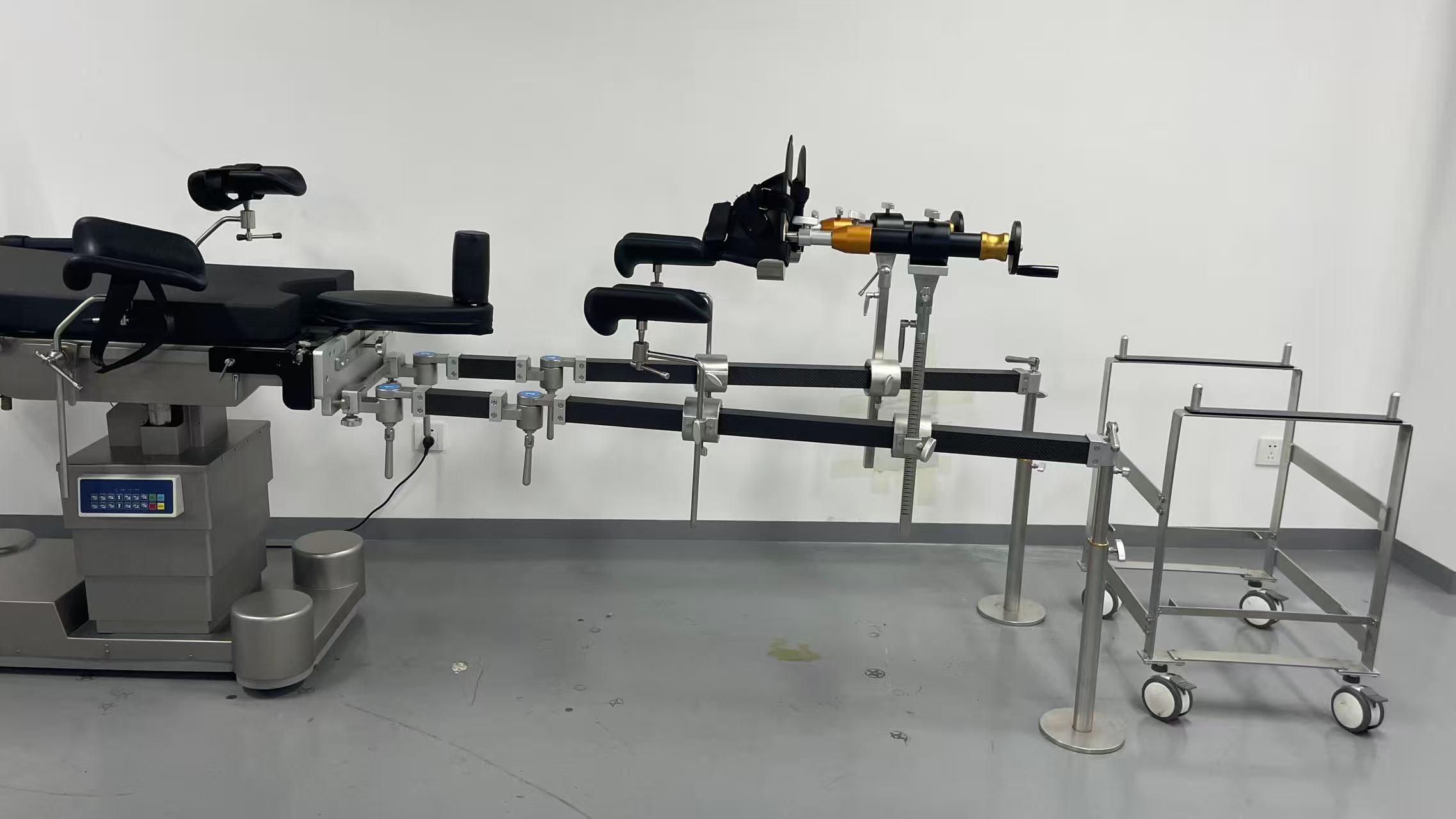

SXD8804 Multi Purpose Electrical Hydraulic Operation Table For medical institutions to support patients, especially for obstetrics and gynecology. Electric control components are adopted to ensure stable and reliable transmission. Self-locking of various positions after adjustment is reliable to ensure the safety of the operation. The main body of the machine is composed of high strength carbon steel, and the large part is made of 0Cr18Ni9 stainless steel drawing material. The mattress is made . The mattress is made of advanced PU outer and inner cushion rubber sponge and memory cotton material，bed board raw material aseptic treatment，fireproof，anti-static special board.This machine line is smooth ，simple and clear ，sincere and gorgeous， strong corrosion resistant，easy to diainfect，cleaning.
| Type and model | Theatre OT Table Electric Hydraulic Surgical Bed With One Key Reset Electric Hydraulic Orthopedic Operating Table With Traction Frame |
| Material: | 304 Stainless steel |
| Table size | 2100*550mm |
| Table height | 650-1100mm |
| Back plate up folding | ≥85° |
| Back plate down folding | ≥30° |
| Head plate(up/down) | ≥30°-90° |
| Leg plate(up/down) | ≥15°/90° |
| Lifting motion | 450mm |
| Lateral tilt | ≥25° |
| Trendelenburg& reverse trendelenburg | ≥35° |
| Horizontal sliding movement | ≥300mm |
| Emergency electric brake | Yes |
| Flex/reflex feature | Yes |
| Built-in battery system | Yes, 2-3 hours |
| Kidney bridge | 120mm |
| Feature | A. Designed for ophthalmic and neurosurgery surgeries with ultra-low positions, doctors can perform seated surgeries. B. The table top is divided into five sections: head plate, back plate, hip plate, leg plate and foot plate. The head section and leg section can be interchanged to fully meet the needs of various surgical Surgical positions. C. The table top is made of X-rays that can be transmitted, and there is a cassette guide under the table, which can be used for photography. While ensuring stability, the eccentric pillar structure allows the operating table to obtain the maximum X-ray perspective space. D. The countertop is equipped with a back plate and hip plate composite bending button, providing convenience for surgeries such as gallbladder and kidney. E.The operating table is equipped with casters for easy dragging and retraction. F. Two independent hydraulic drive systems ensure that in the event of a malfunction in one system of the operating table, another backup system is activated. G. The operating table can be powered directly by a power source or by a rechargeable battery (charging for 6-8 hours can meet the needs of 80-100 surgeries). H. The edge rails, base, and pillars of the operating table are made of high-quality stainless steel, which is corrosion-resistant, easy to clean, and durable. I. It can be equipped with a skull frame with X-ray transmission configuration, and its perfect combination will become the most satisfactory hand group for neurosurgeons. J. The T-shaped base design provides the operating table with extremely high stability and good mobility, and provides doctors with greater foot space, reducing fatigue caused by long-term surgery. |
SXD8804 Multi Purpose Electrical Hydraulic Operation Table For medical institutions to support patients, especially for obstetrics and gynecology. Electric control components are adopted to ensure stable and reliable transmission. Self-locking of various positions after adjustment is reliable to ensure the safety of the operation. The main body of the machine is composed of high strength carbon steel, and the large part is made of 0Cr18Ni9 stainless steel drawing material. The mattress is made . The mattress is made of advanced PU outer and inner cushion rubber sponge and memory cotton material，bed board raw material aseptic treatment，fireproof，anti-static special board.This machine line is smooth ，simple and clear ，sincere and gorgeous， strong corrosion resistant，easy to diainfect，cleaning.
| Type and model | Theatre OT Table Electric Hydraulic Surgical Bed With One Key Reset Electric Hydraulic Orthopedic Operating Table With Traction Frame |
| Material: | 304 Stainless steel |
| Table size | 2100*550mm |
| Table height | 650-1100mm |
| Back plate up folding | ≥85° |
| Back plate down folding | ≥30° |
| Head plate(up/down) | ≥30°-90° |
| Leg plate(up/down) | ≥15°/90° |
| Lifting motion | 450mm |
| Lateral tilt | ≥25° |
| Trendelenburg& reverse trendelenburg | ≥35° |
| Horizontal sliding movement | ≥300mm |
| Emergency electric brake | Yes |
| Flex/reflex feature | Yes |
| Built-in battery system | Yes, 2-3 hours |
| Kidney bridge | 120mm |
| Feature | A. Designed for ophthalmic and neurosurgery surgeries with ultra-low positions, doctors can perform seated surgeries. B. The table top is divided into five sections: head plate, back plate, hip plate, leg plate and foot plate. The head section and leg section can be interchanged to fully meet the needs of various surgical Surgical positions. C. The table top is made of X-rays that can be transmitted, and there is a cassette guide under the table, which can be used for photography. While ensuring stability, the eccentric pillar structure allows the operating table to obtain the maximum X-ray perspective space. D. The countertop is equipped with a back plate and hip plate composite bending button, providing convenience for surgeries such as gallbladder and kidney. E.The operating table is equipped with casters for easy dragging and retraction. F. Two independent hydraulic drive systems ensure that in the event of a malfunction in one system of the operating table, another backup system is activated. G. The operating table can be powered directly by a power source or by a rechargeable battery (charging for 6-8 hours can meet the needs of 80-100 surgeries). H. The edge rails, base, and pillars of the operating table are made of high-quality stainless steel, which is corrosion-resistant, easy to clean, and durable. I. It can be equipped with a skull frame with X-ray transmission configuration, and its perfect combination will become the most satisfactory hand group for neurosurgeons. J. The T-shaped base design provides the operating table with extremely high stability and good mobility, and provides doctors with greater foot space, reducing fatigue caused by long-term surgery. |
