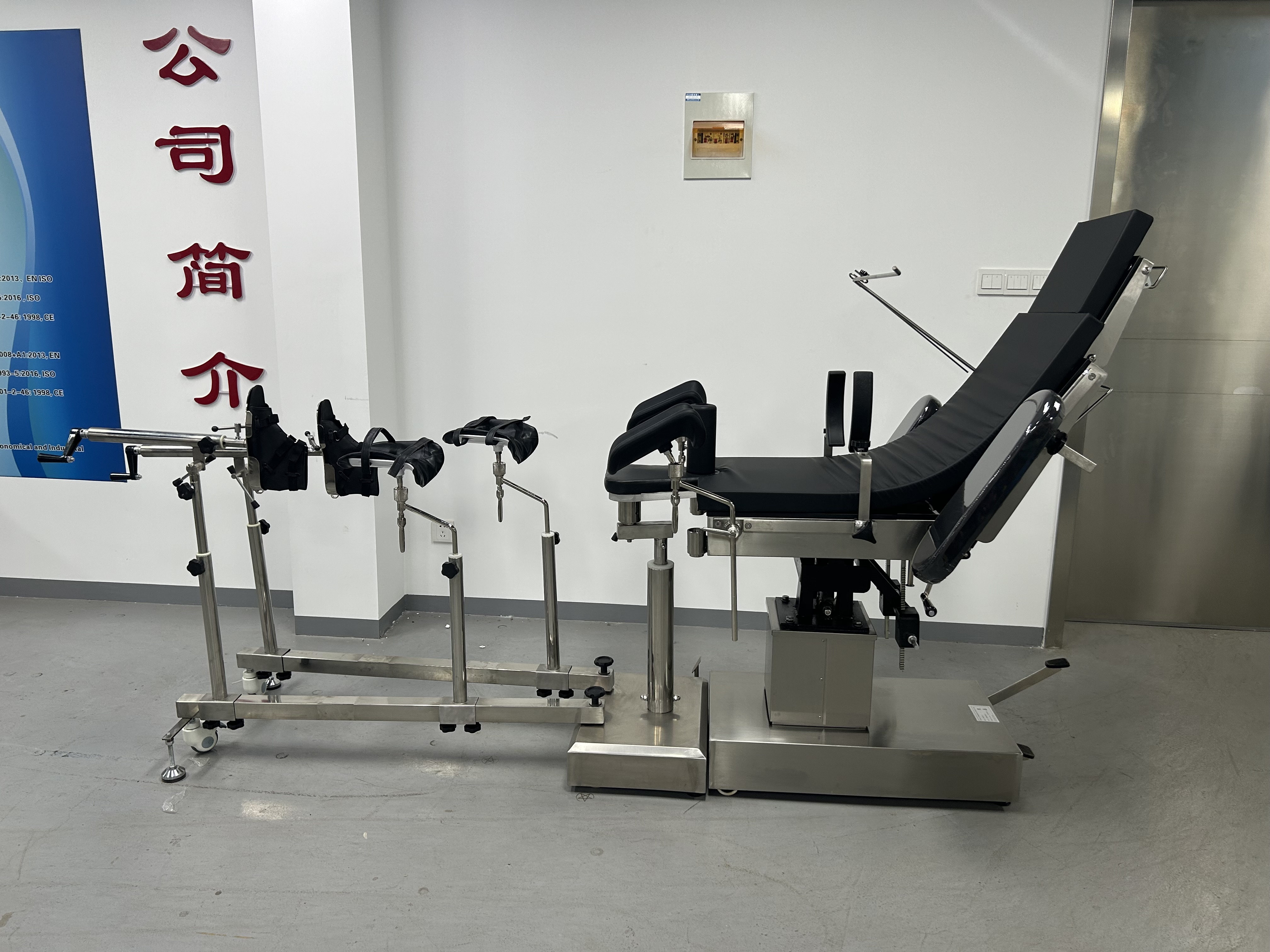

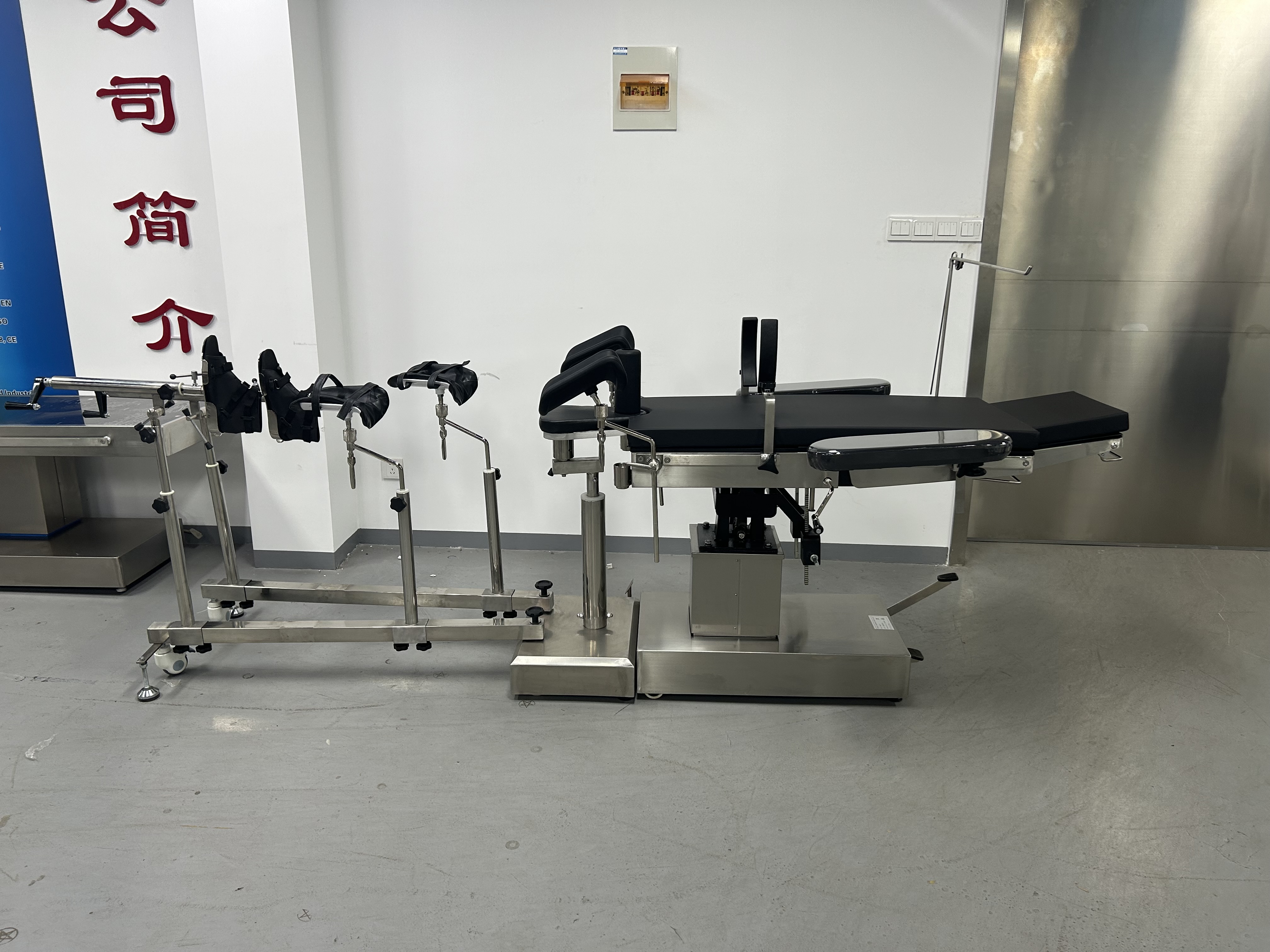

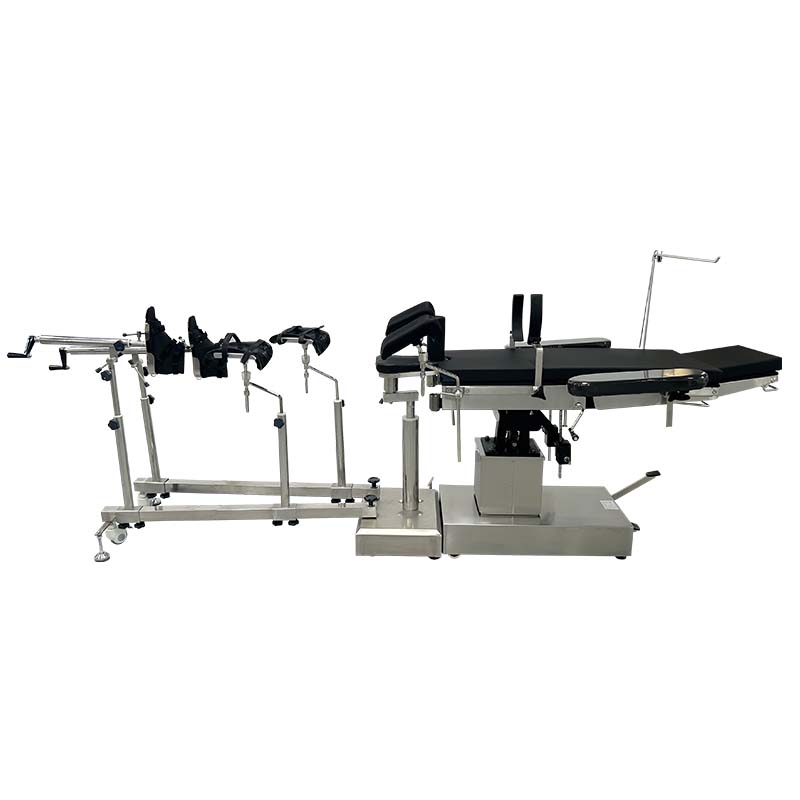

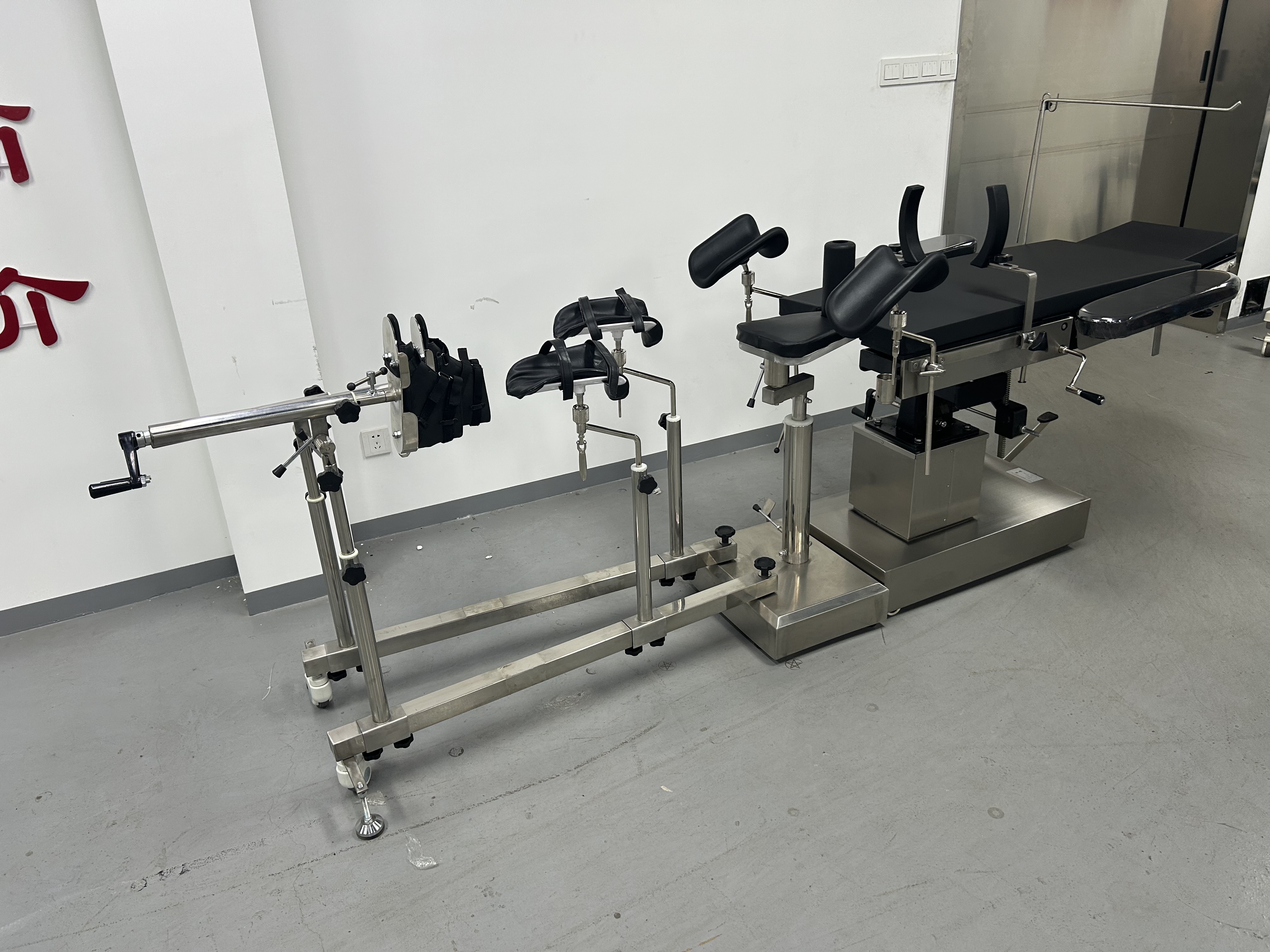

SXS3001-II
SUXIN MEDICAL
9402900000
SXS3001-II is suitable for surgeries of head, neck, thorax, abdomen, perineum and limbs as well as for obstetrics, ophthalmology, otolaryngology, orthopedics and other operations. The table top is radiolucent so that X ray examination is available with the help of C-ARM.
Unique features：
1、The bed surface is antistatic and has excellent X-ray fluoroscopy performance.
2、The leg plate adopts the air spring and gravity compensation to operate easily.
3、The horizontal sliding distance exceeds 300mm which provides a better X-ray area.
4、The detachable leg plate is so convenient for urology surgeries to rotate outwards manually, adjust and fold；
5、The detachable head plate provides a more flexible operating room；
6、The table is mainly made of stainless steel, easy to clean and anti-pollution.
7、This device base can be fixed or moved freely and also with the mute caster.
8、The table with lifting, Trendelenburg, reverse Trendelenburg, lateral tilt motions(Trendelenburg &reverse Trendelenburg and lateral tilt are optional)、back plate adjustment, horizontal sliding functions.
9、Device with brake petal to make doctors lock the operating table easily.
10, Can be connected together with traction frame set.
Technical parameters:
Table size | 2100（±20）×500（±20）mm |
Table height | 700(±20)- 950(±20) mm |
Lateral tilt | ≥18° |
Trendelenburg& reverse trendelenburg | ≥20° |
Back plate up/down folding | ≥70°/15° |
Head plate adjustment | ≥30°--90° |
Kidney bridge adjustment | ≥100 mm |
Electric horizontal sliding | ≥300mm |
Leg plate（up/down/outwards） | ≥15°/90°/90° |
Configuration:
No | Accessories name | Qty | Unit |
1 | Table body | 1 | set |
2 | Mattress | 1 | set |
| 3 | Anesthetic screen | 1 | set |
5 | Hand support | 2 | pcs |
6 | Leg support | 2 | pcs |
7 | Kidney bridge | 2 | pcs |
8 | Foot support | 2 | pcs |
| 9 | Operation manual | 1 | set |
