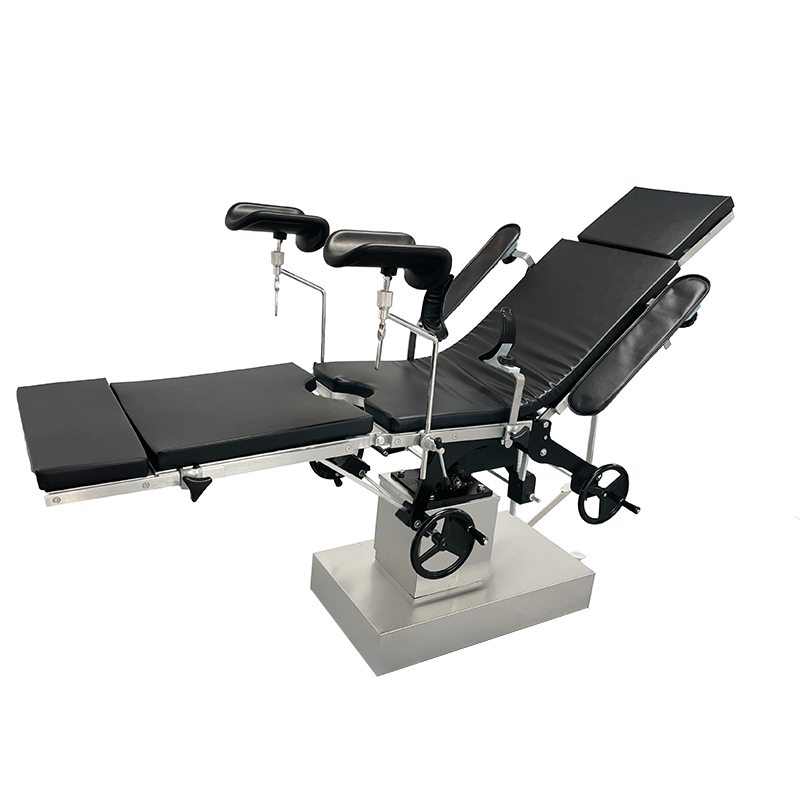

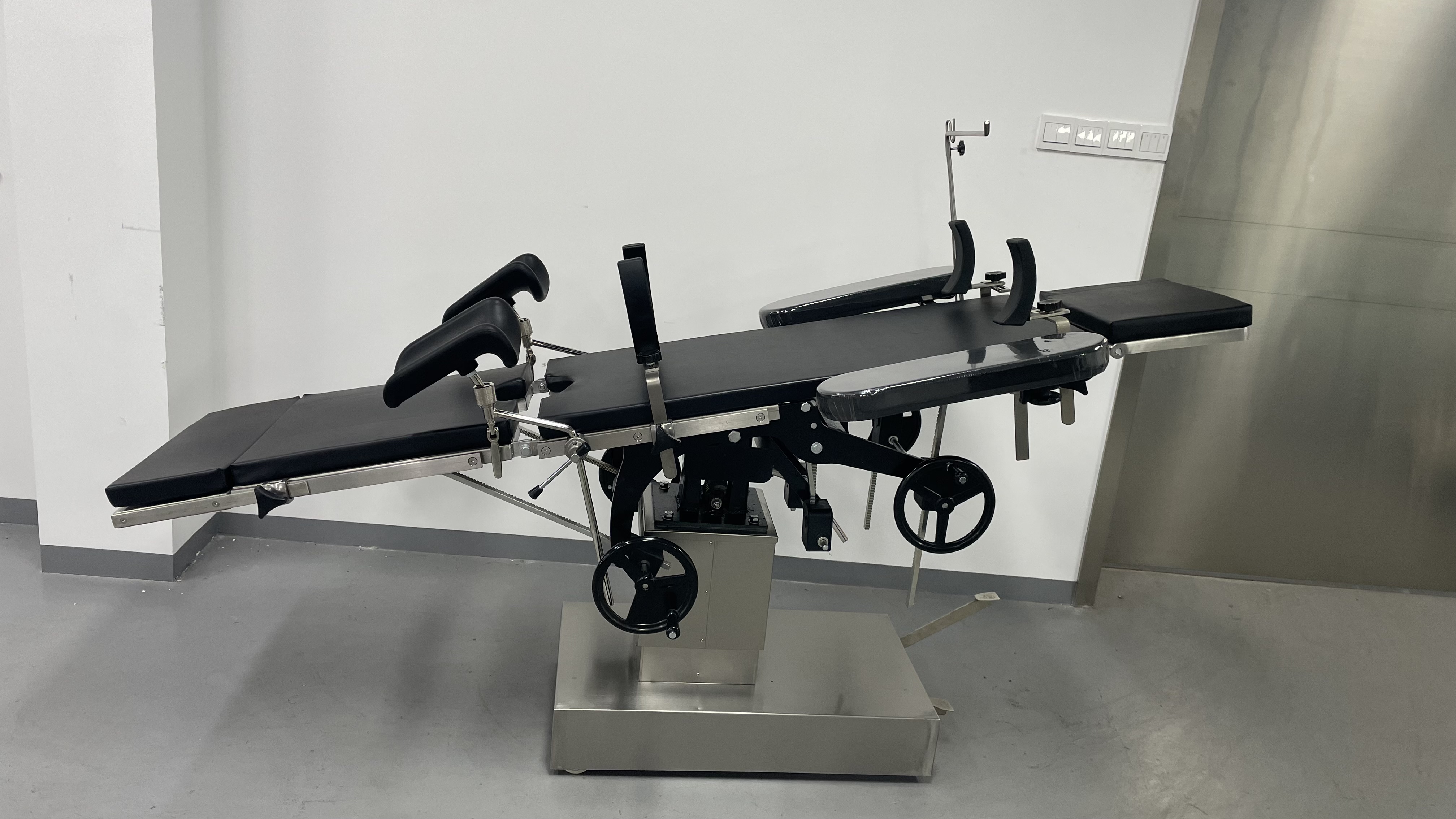

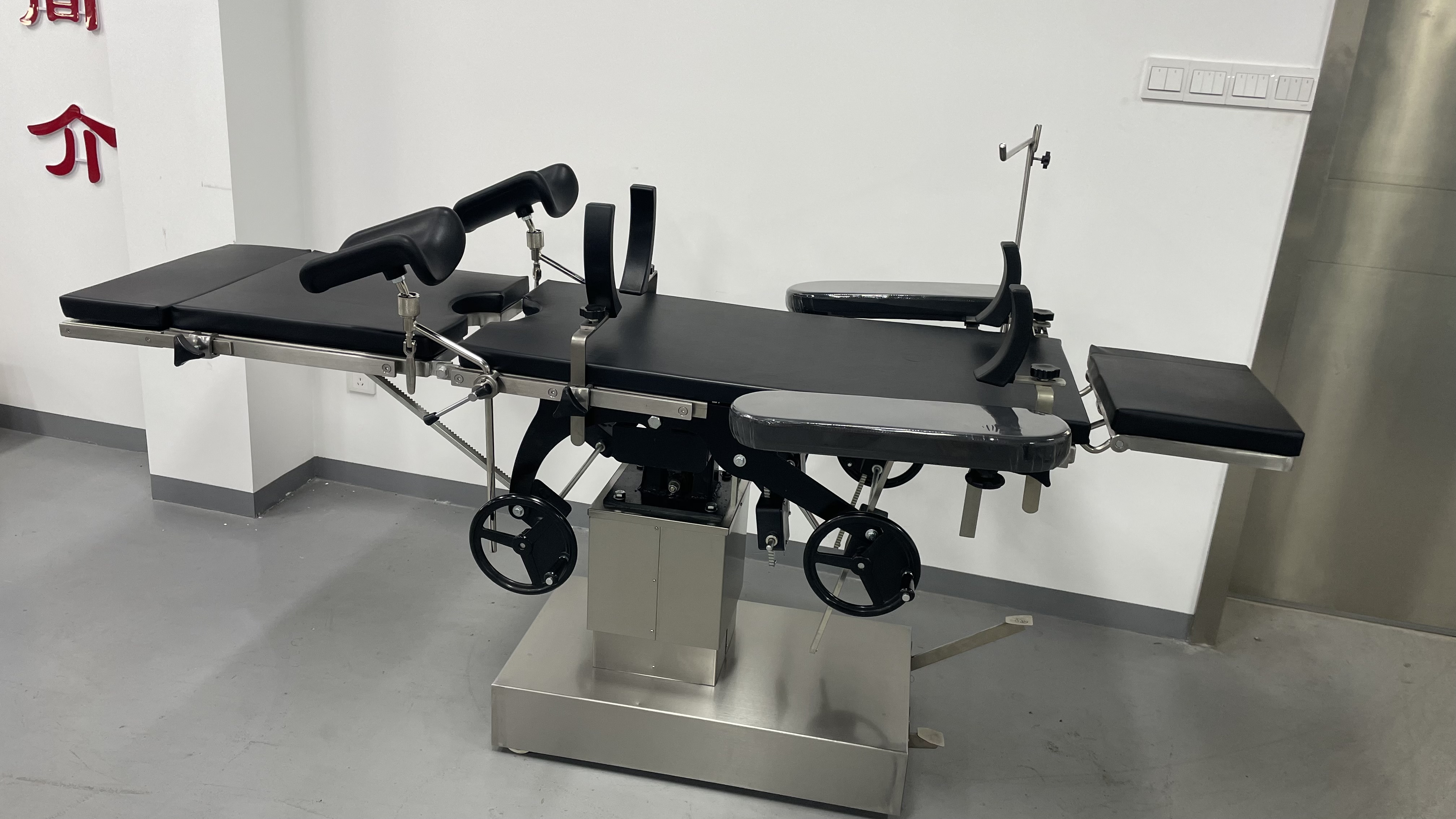

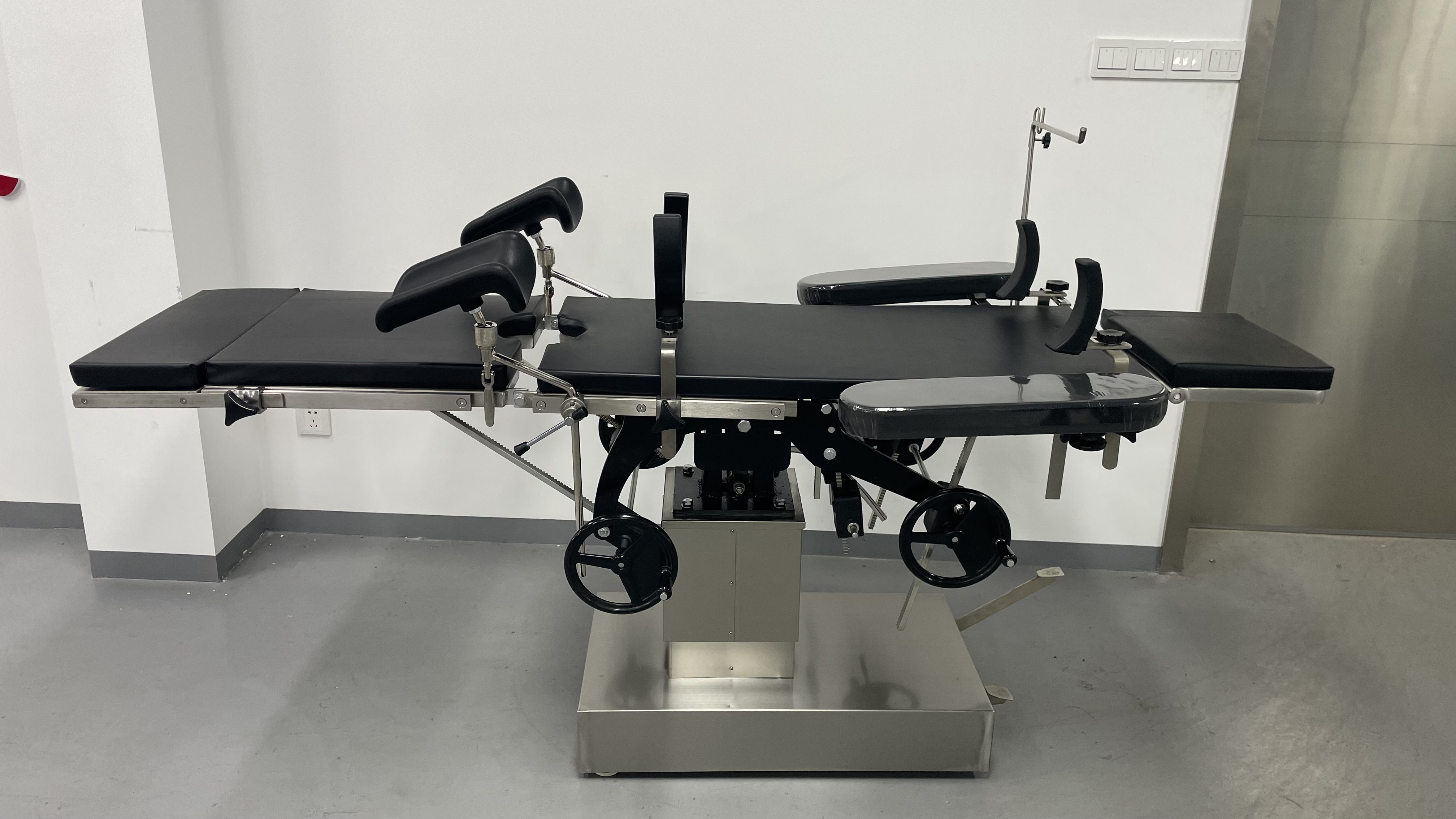

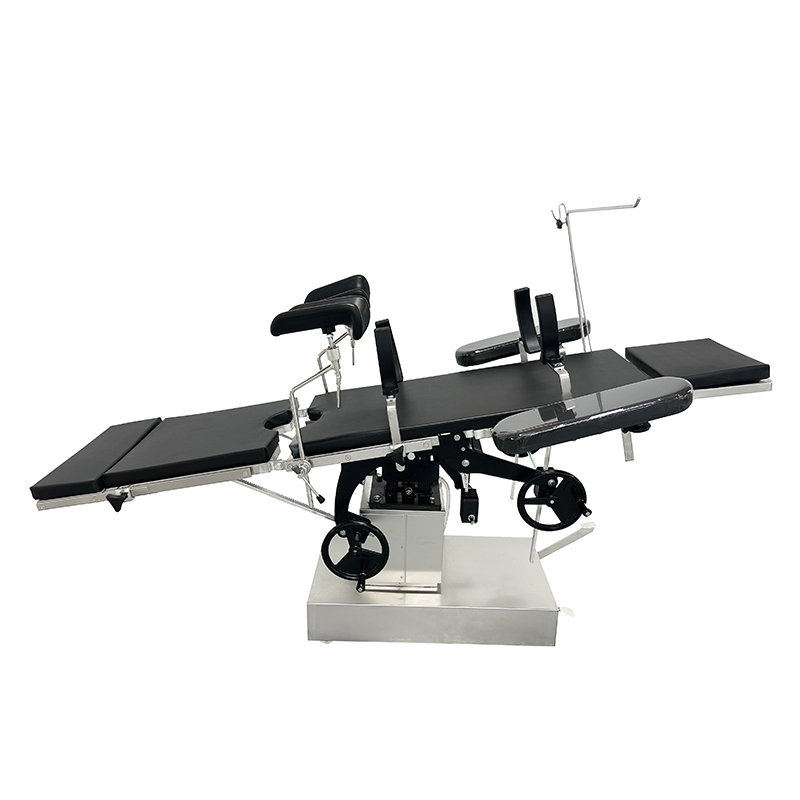

SXS3001-I
Suxin Medical
9402900000
SXS3001-I is suitable for surgeries of head, neck, thorax, abdomen, perineum and limbs as well as for obstetrics, ophthalmology, otolaryngology, orthopedics and other operations. The table top is optional radiolucent so that X ray examination 1s available with the help of C-ARM.
Unique features：
1、The leg plate adopts the air spring and gravity compensation to operate easily.
2、The table total with five sections, mattress with foam sponge, easy to clean, corrosion-resistant, not easy to damage, antibacterial, anti-static, can effectively prevent patients from bedsore.
3、The detachable head plate provides a more flexible operating room；
4、The table is mainly made of stainless steel, easy to clean and anti-pollution.
5、This device base can be fixed or moved freely and also with the mute caster.
6、The table with up/down lifting, Trendelenburg, reverse Trendelenburg, lateral tilt motions and back plate adjustment movements.
7、Device with front brake system to make doctors lock the operating table easily.
Technical parameters:
Table size | 2100（±20）×500（±20）mm |
Table height | 750(±20)- 1000±20) mm |
Lateral tilt | ≥18°electrical motion |
Trendelenburg& reverse trendelenburg | ≥20° electrical motion |
Back plate up/down folding | ≥70°/30° |
Head plate adjustment | ≥30°--90° |
Kidney bridge adjustment | ≥100 mm |
Leg plate up adjustment | ≥15° |
Leg plate down adjustment | ≥90° |
Configuration:
No | Accessories name | Qty | Unit |
1 | Table body | 1 | set |
2 | Mattress | 1 | set |
3 | Anesthetic screen | 1 | set |
4 | Arm support | 2 | pcs |
5 | Leg support | 2 | pcs |
6 | Kidney bridge | 2 | pcs |
| 7 | Foot plate | 2 | pcs |
8 | Operation manual | 1 | set |
