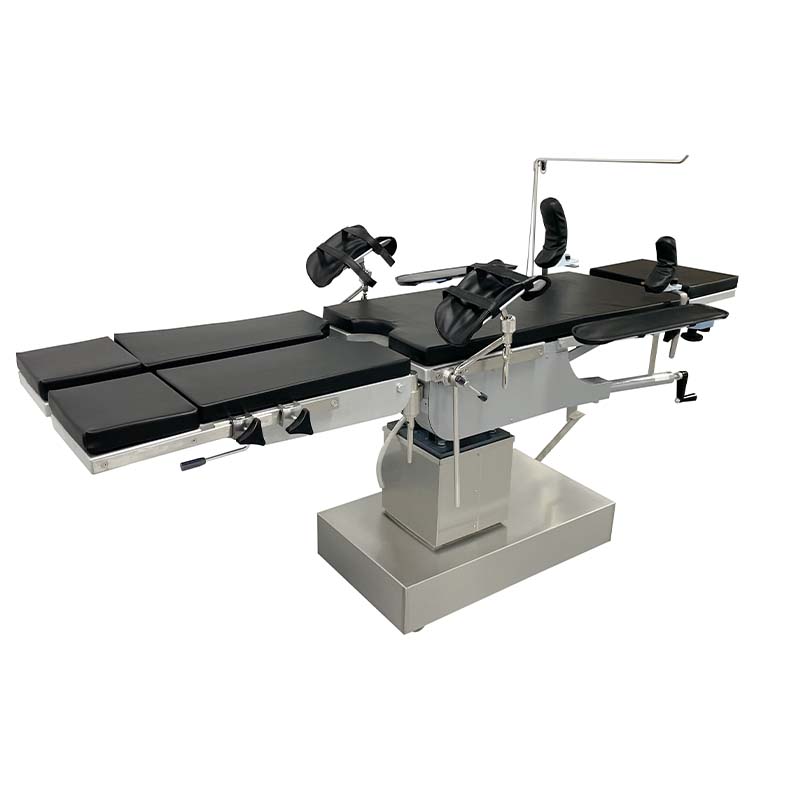

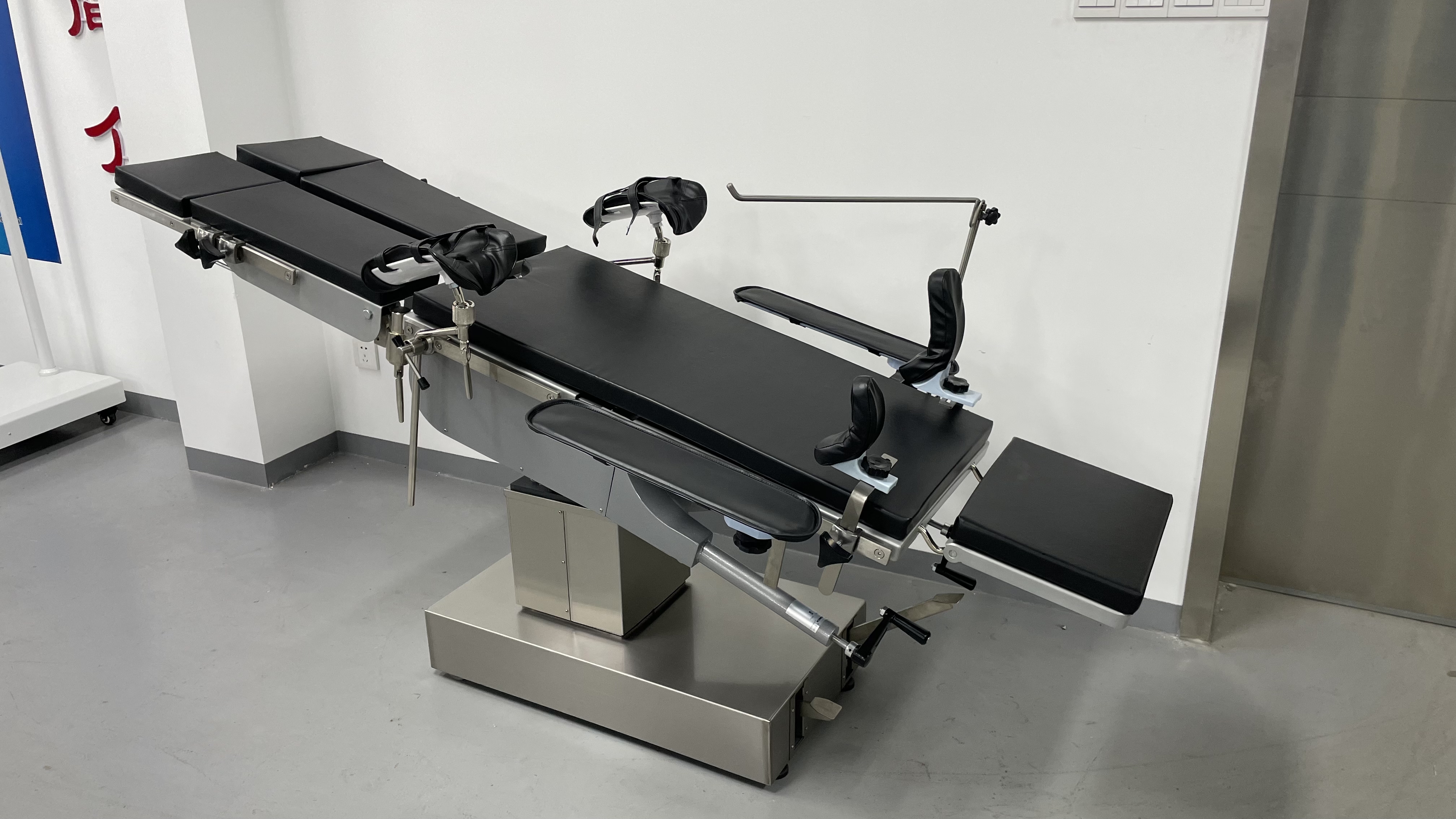

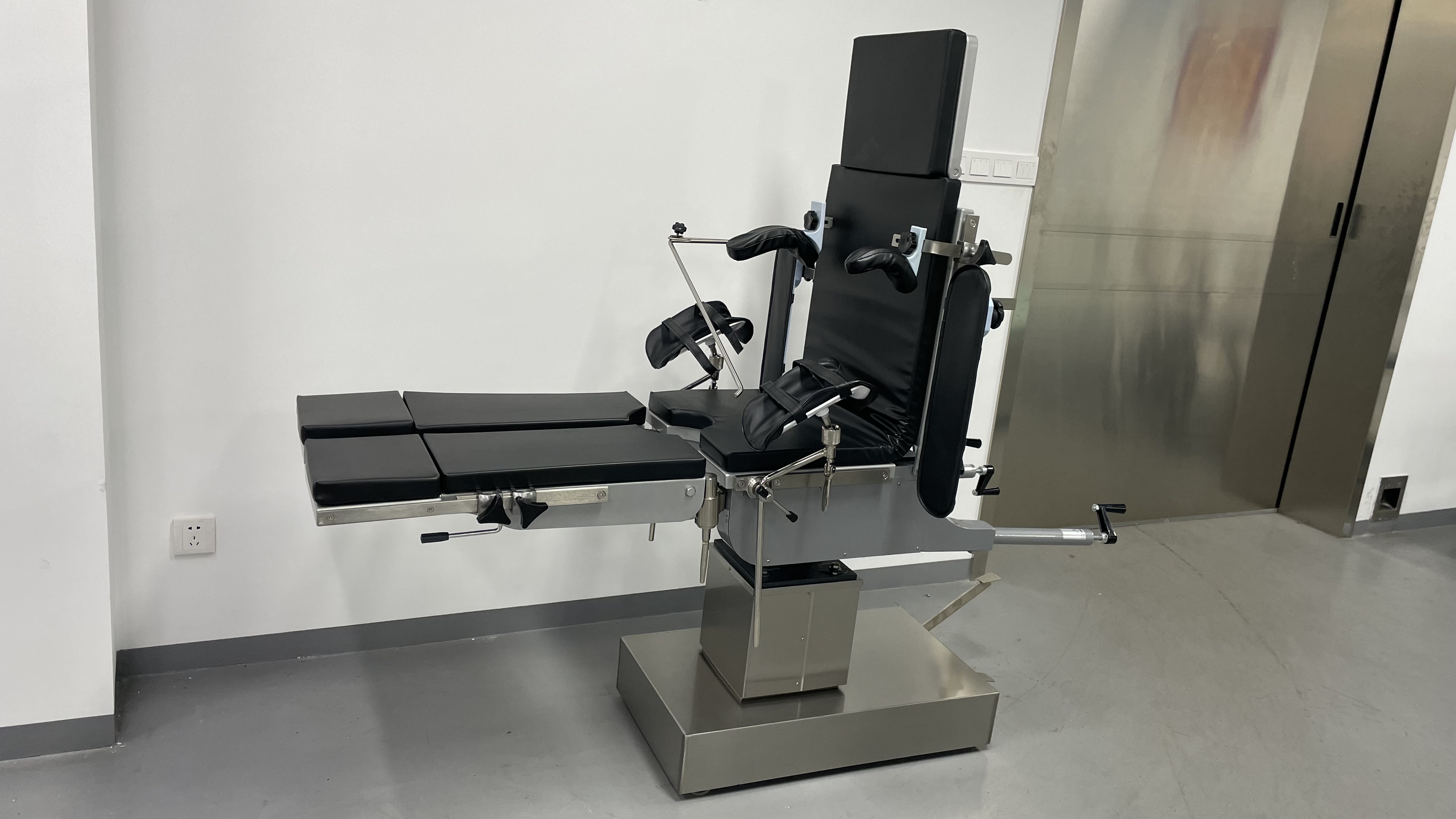

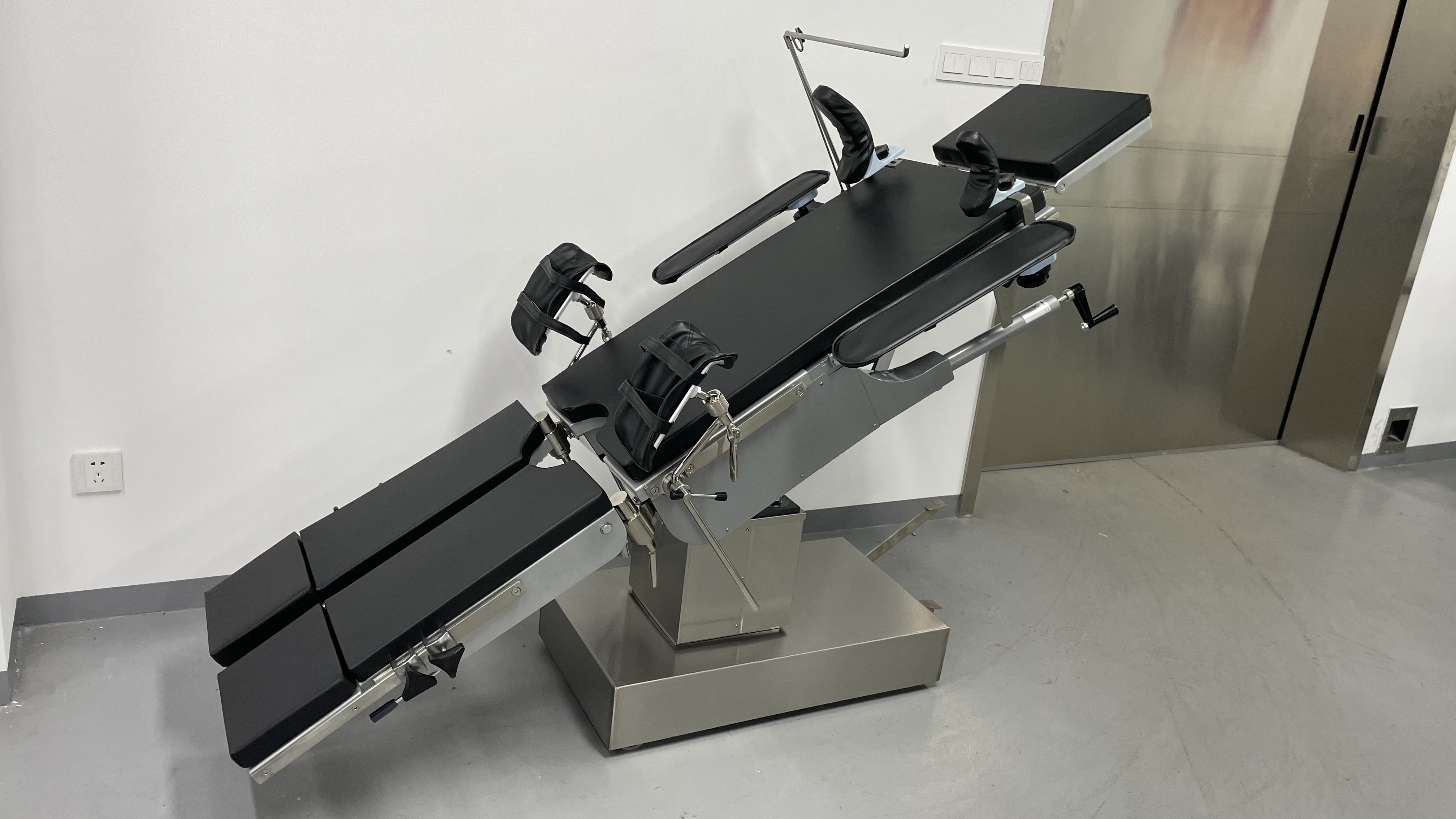

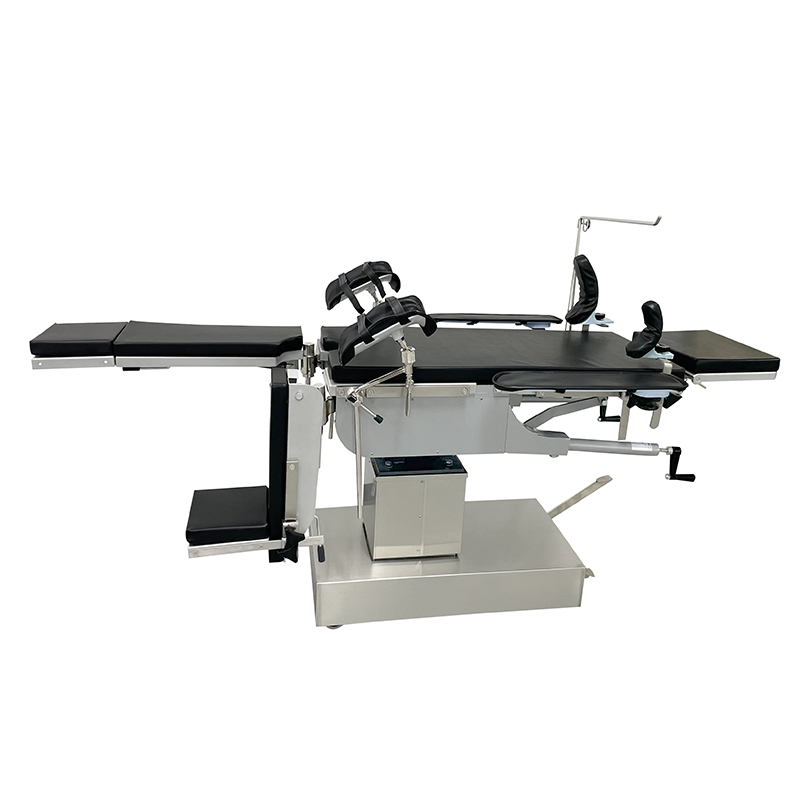

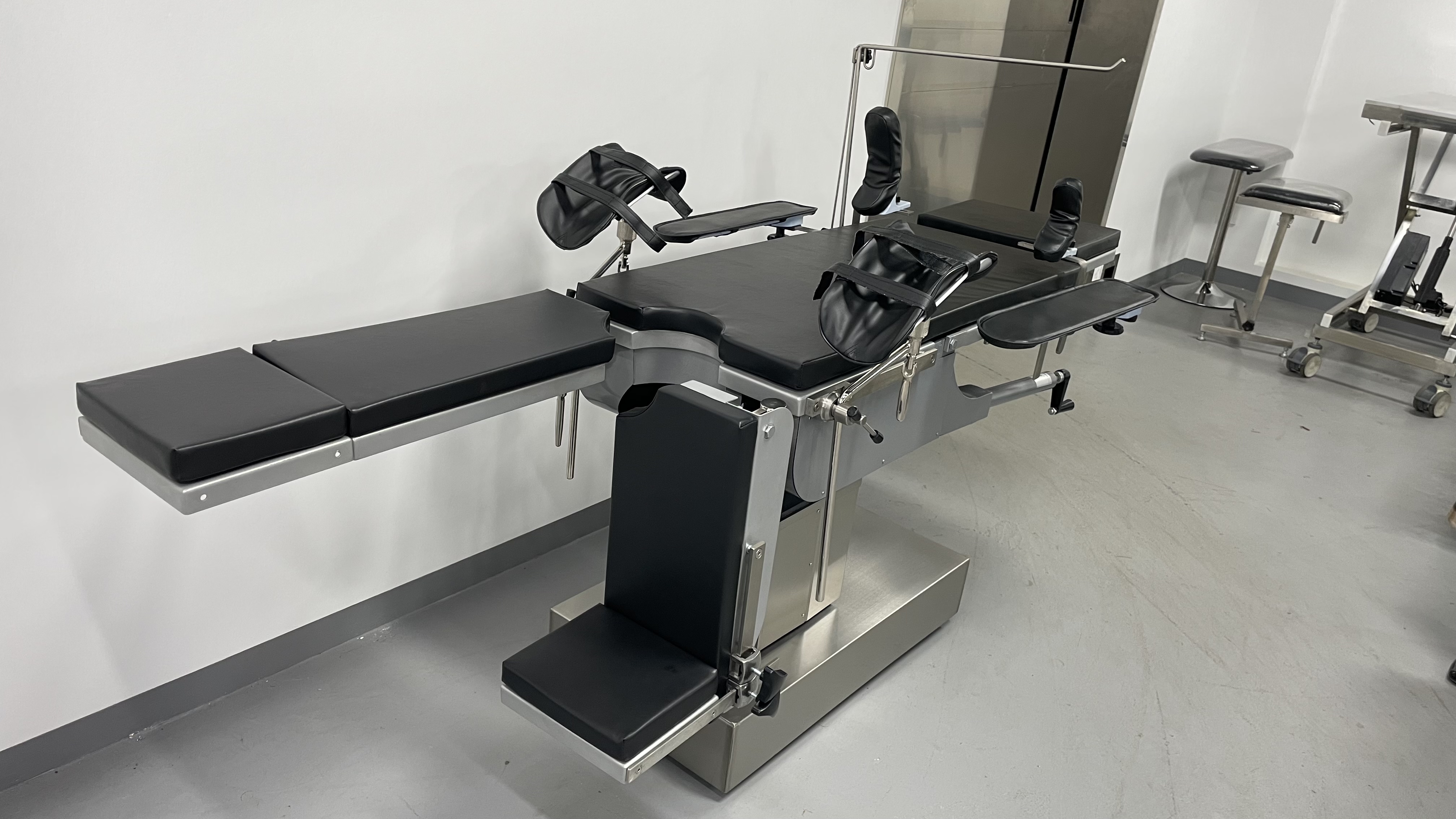

SXS3008-II
Suxin Medical
9402900000
SXS3008-II is suitable for surgeries of head, neck, thorax, abdomen, perineum and limbs as well as for obstetrics, ophthalmology, otolaryngology, orthopedics and other operations.
Unique features：
1、The table with oil pump hydraulic lifting, the adjustable positions are controlled by head.
2、The table surface and shield material can be optional with high quality carbon steel power coating or high quality stainless steel.
3、SXS3008 is single tabletop, power coated steel material, base and shield in stainless steel material.
4、Leg plate is split type.
Technical parameters：
Table size | 2100（±20）×500（±20）mm |
Table height | 750(±20) mm |
Height adjustment | 250mm |
Lateral tilt | ≥20° |
Trendelenburg& reverse trendelenburg | ≥20° |
Back plate adjustment | ≥70°-15° |
Head plate adjustment | ≥±30°-90° |
Kidney bridge adjustment | ≥100 mm |
Leg plate up down and outwards | ≥15°/90°/90° |
Configuration:
No | Accessories name | Qty | Unit |
1 | Table body | 1 | set |
2 | Mattress | 1 | set |
3 | Anesthetic screen holder | 1 | set |
4 | Arm support | 2 | pcs |
5 | Leg support | 2 | pcs |
6 | Kidney bridge | 2 | pcs |
7 | Handle | 2 | pcs |
8 | Foot plate | 2 | pcs |
9 | Operation manual | 1 | set |
